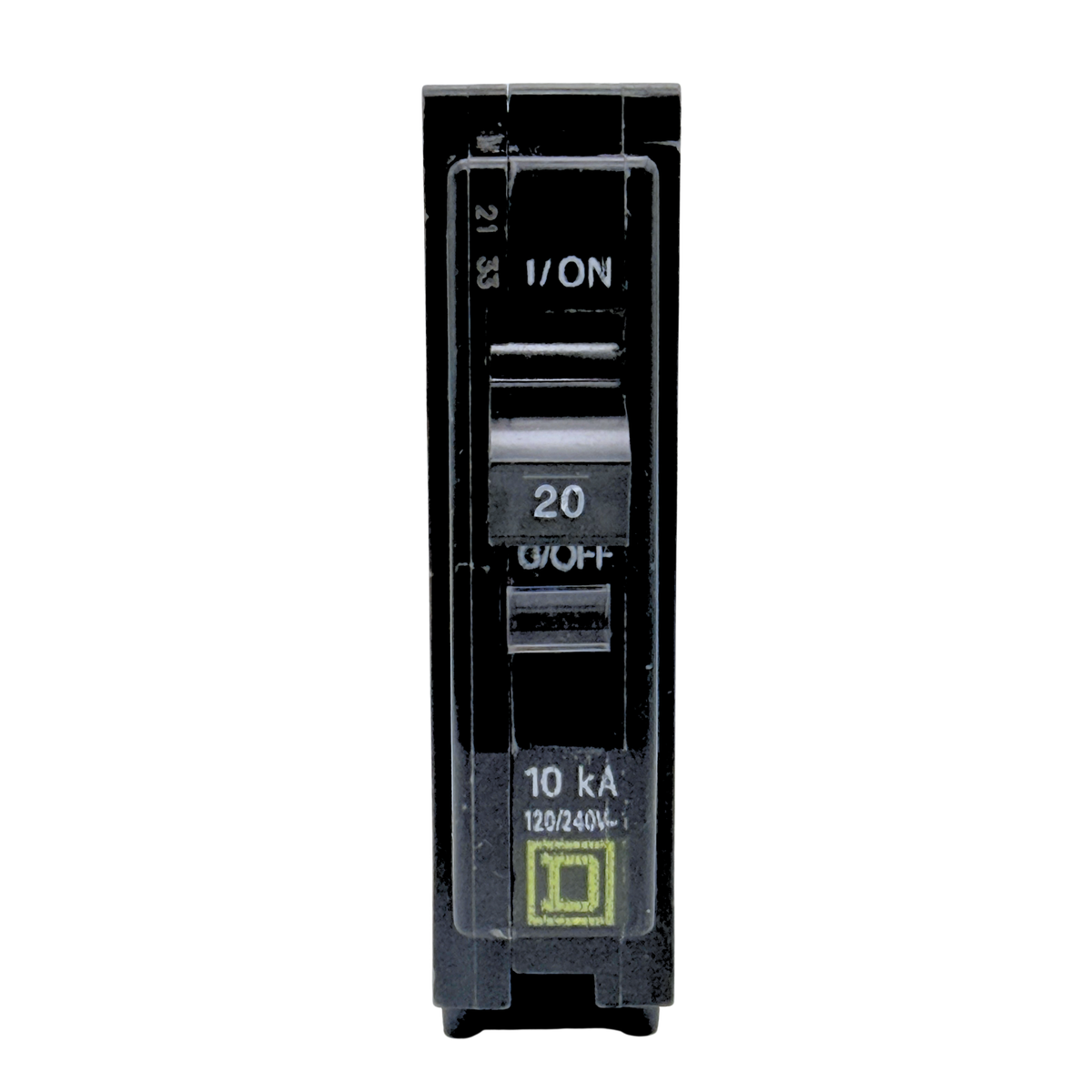

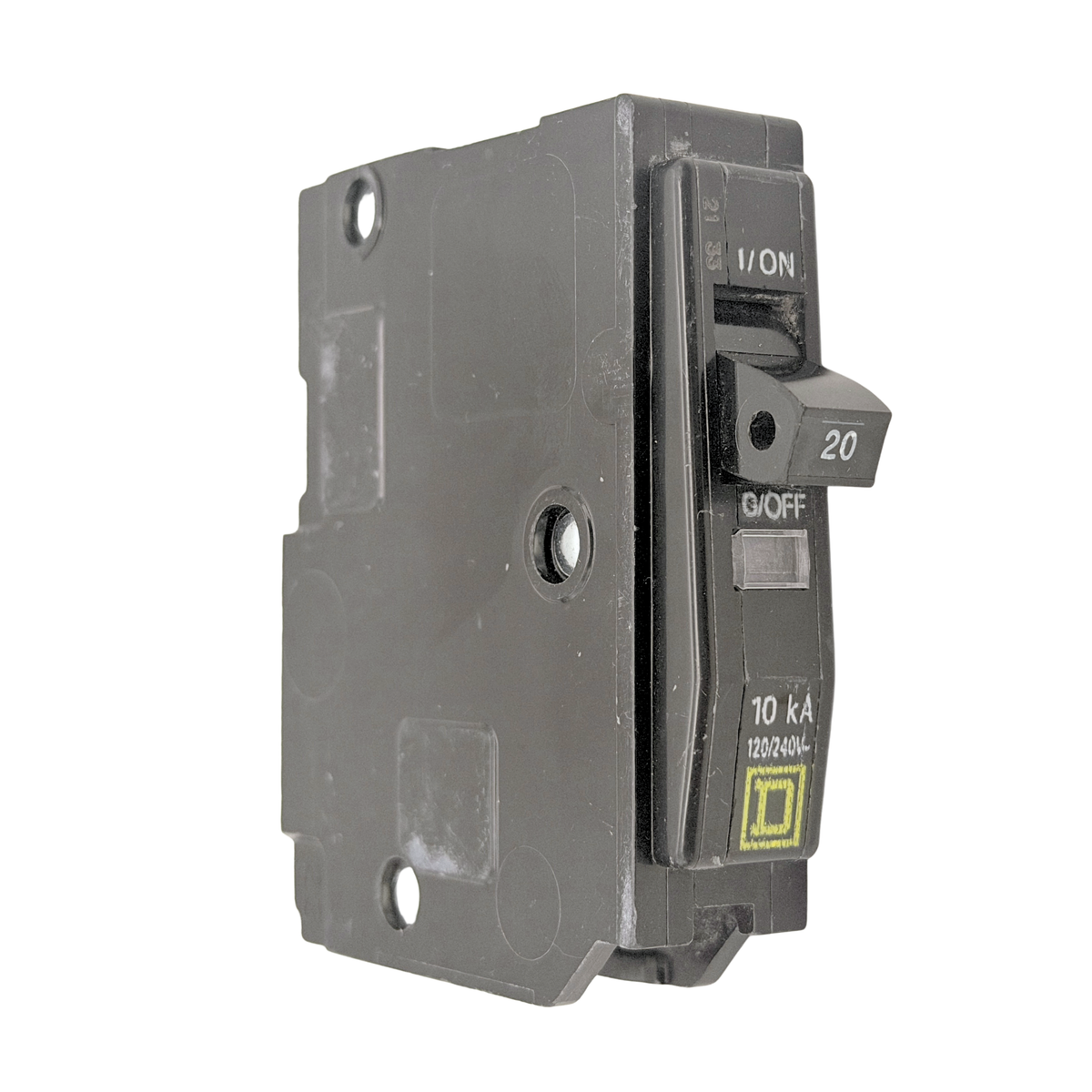

Square D QO120 20 Amp Single-Pole Circuit Breaker, QO Plug-On 120/240V

The Square D QO120 by Schneider Electric is a 20 Amp, 1-pole, 120/240VAC plug-on circuit breaker for Square D QO load centers. It gives your branch circuits reliable thermal-magnetic protection against overloads and short circuits, and it's the go-to 20A breaker for kitchen, bathroom, laundry, and garage receptacle circuits in homes with a QO panel.

Visi-Trip: Know Which Breaker Tripped

When a QO breaker trips, a bright red indicator pops into the window on the front. No more flipping every breaker in the panel to find the one that tripped. You see it at a glance.

Features

• 20A, 1-pole, 120/240VAC, 10kA interrupting rating
• Thermal-magnetic trip for overload and short-circuit protection
• Visi-Trip red indicator shows when the breaker has tripped
• HACR rated for air conditioning, heating, and refrigeration equipment
• SWD (switching duty) rated for switching 120V fluorescent lighting loads

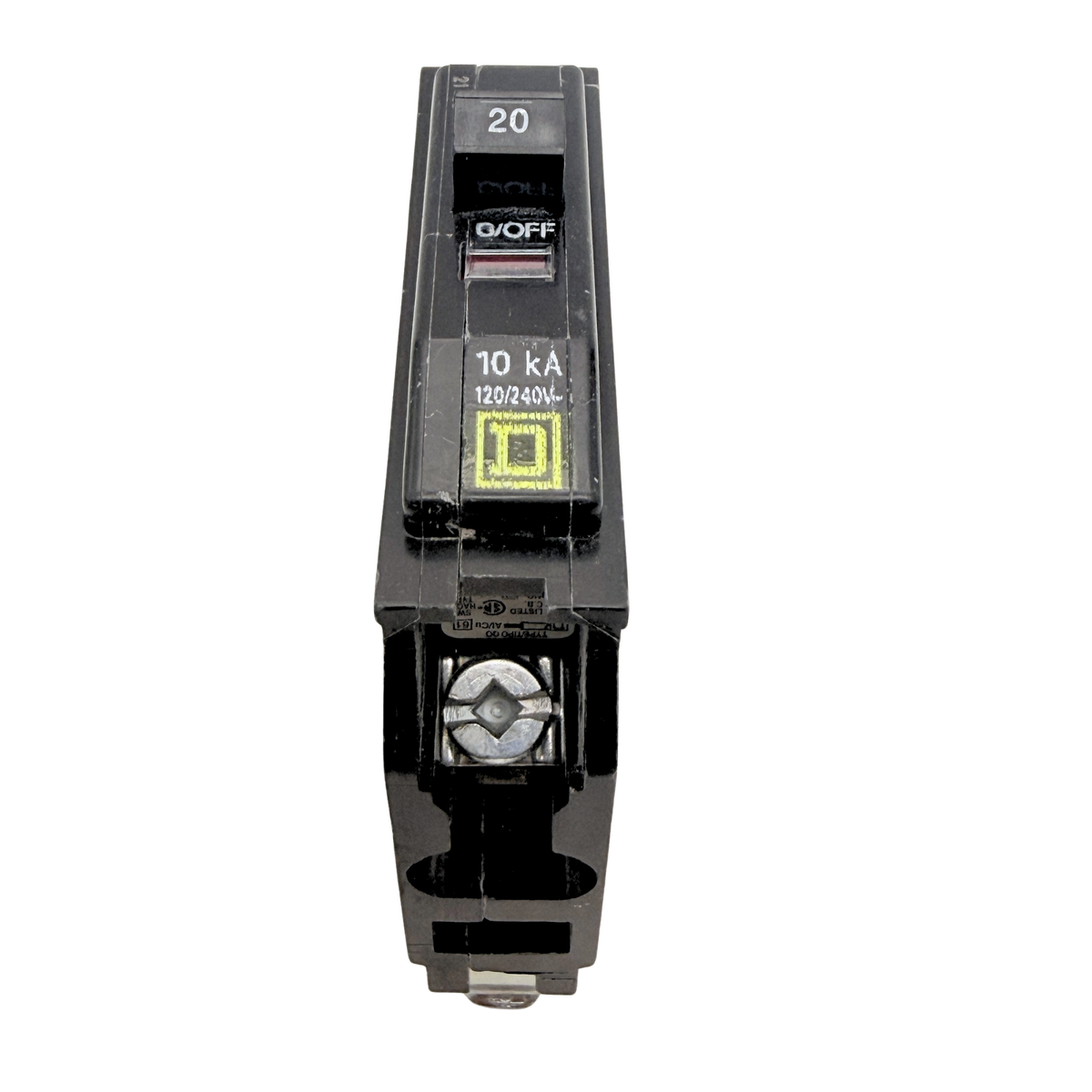

• Pressure plate terminal accepts 14 to 8 AWG copper or aluminum wire

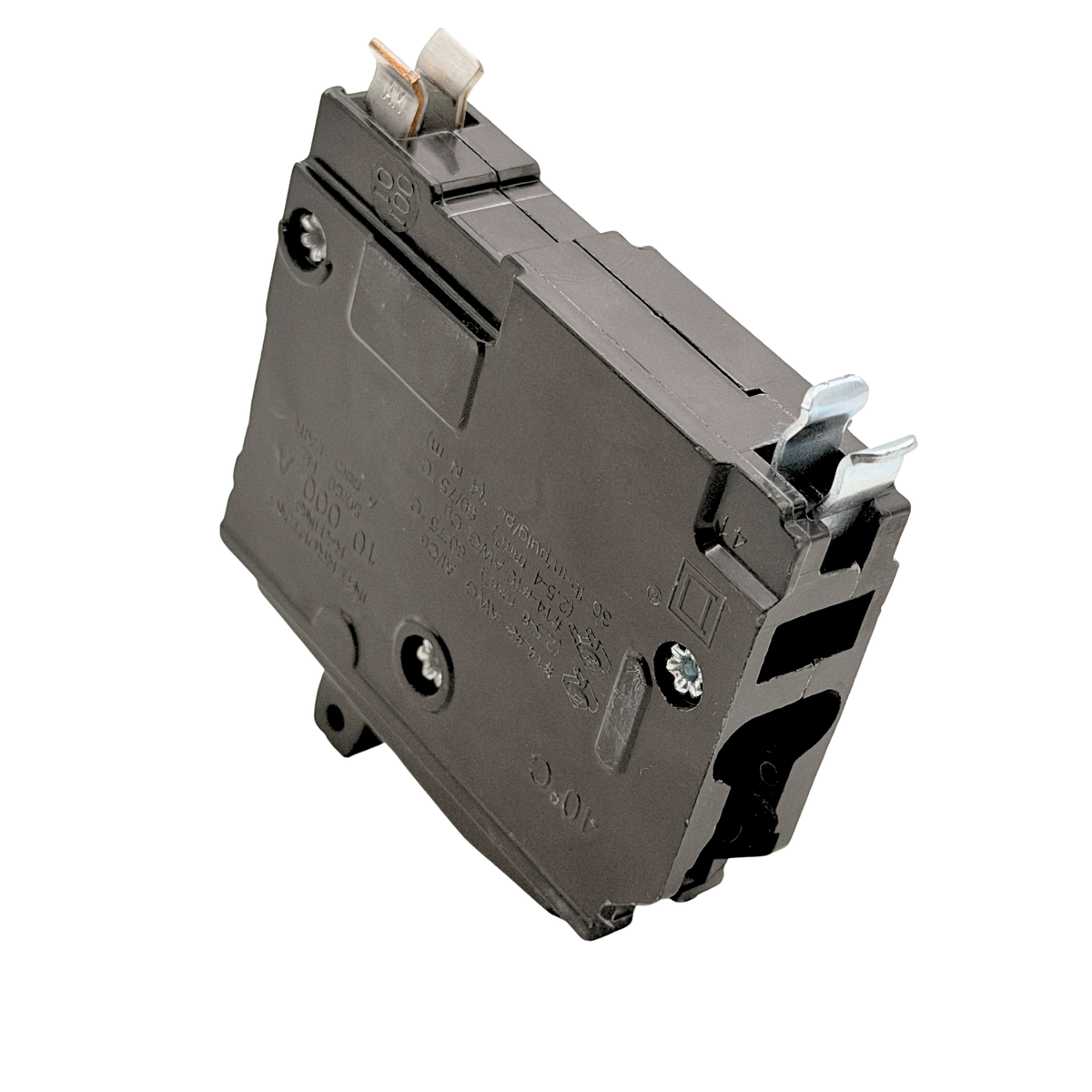

• Plug-on mounting: snaps onto the panel bus
• UL Listed and CSA Certified

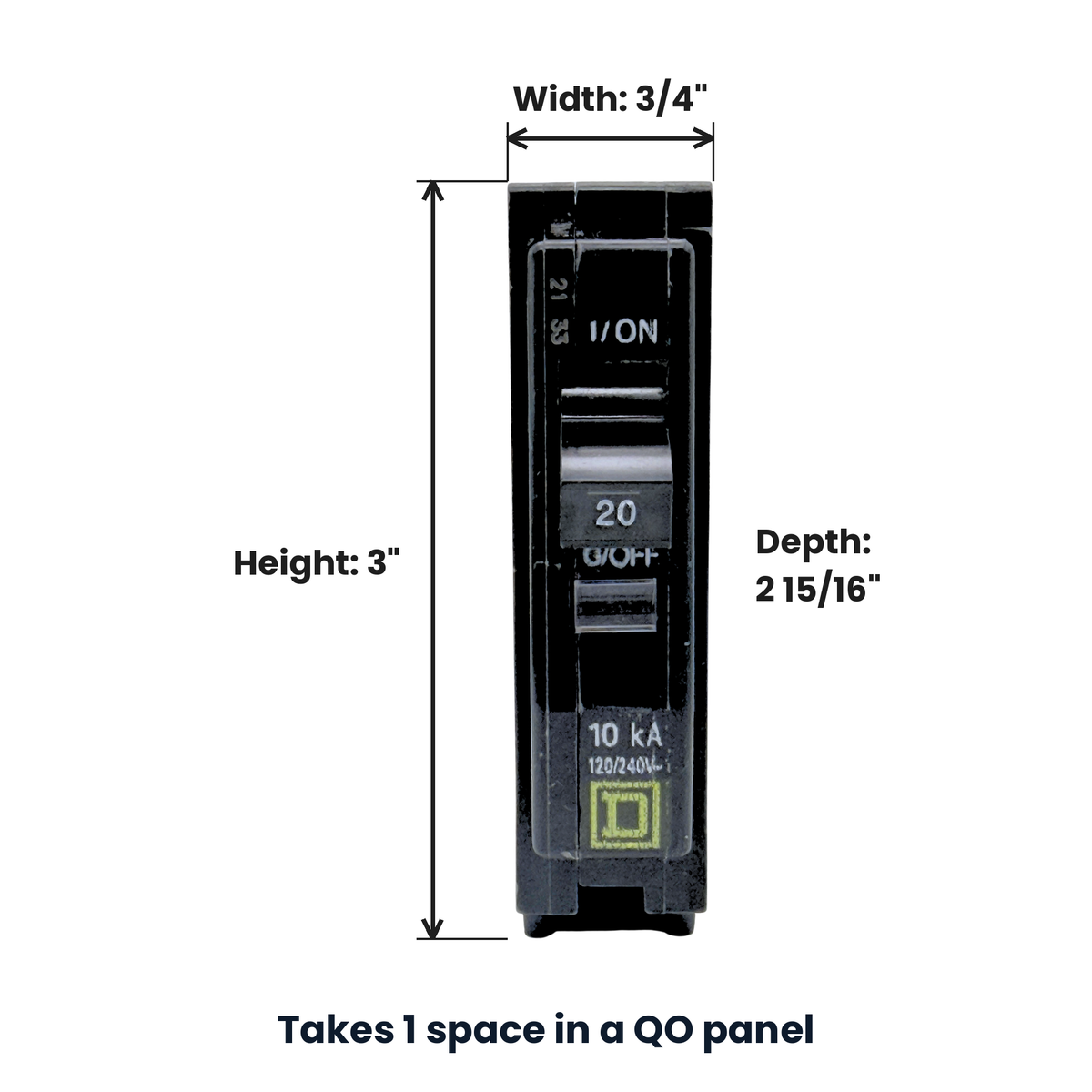

Size

3/4" wide, 3" tall, and 2 15/16" deep. It takes one space in the panel, the same as any standard QO 1-pole breaker.

Uses

Kitchen countertop receptacles, bathroom circuits, laundry rooms, garages, dishwashers, disposals, microwaves, and other 20A, 120V branch circuits wired with 12 AWG copper.

Most Common Use

Kitchen and bathroom receptacle circuits, which the NEC requires to be 20A, or replacing a worn or faulty 20A breaker in a Square D QO load center.

Important: A 20A breaker must be used with 12 AWG copper wire or larger. Never install a 20A breaker on a circuit wired with 14 AWG wire.

Compatibility: This breaker fits Square D QO load centers and NQ/NQOD panelboards. It does not fit Square D Homeline panels or panels from other brands. Check the label inside your panel door before ordering. If you're unsure, send us a photo of your panel label and we'll help you confirm the fit.

Why Buy From Us

With 24+ years of experience in the electrical industry, we know the products we sell and we're happy to answer your questions before you buy. Same-day handling, insured shipping, 30-day returns, and a 12-month warranty handled directly by us.

Shipping

Ships same day, carefully packaged and insured.

Note

Installation should be performed by a qualified person in accordance with local codes. Always turn off the main breaker before working inside a panel.
