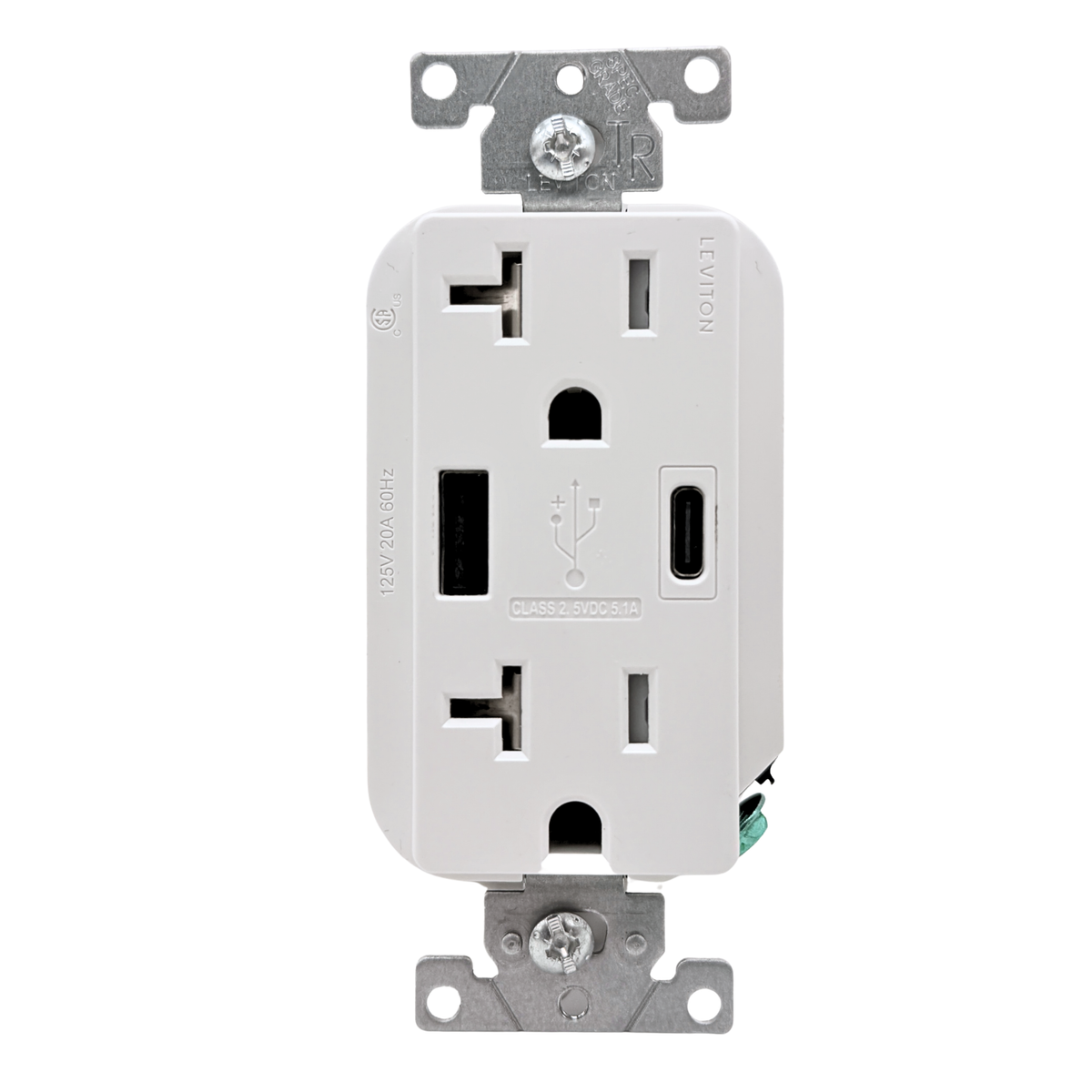

Leviton T5833-W 20 Amp USB Charger Outlet, Type-A + Type-C 5.1A 25W, Tamper Resistant Decora Receptacle – White

The Leviton T5833-W is a brand new 20 Amp, 125V tamper-resistant Decora outlet with built-in USB Type-A and Type-C charging ports. Charge a phone and a tablet at the same time and still keep both outlets free for plugs. No more bulky wall adapters.

Two USB Ports: Type-A and Type-C

One USB Type-C port (up to 3A) and one USB Type-A port (up to 2.4A), with 5.1A / 25+ watts combined at 5VDC. A smart chip recognizes each device and adjusts the charge to what it needs. The Type-C port accepts the cable in either direction.

20 Amp Commercial Spec Grade

This is a NEMA 5-20R receptacle, the T-slot outlet rated for 20A circuits, so it accepts both 15A and 20A plugs. It's specification grade for residential and commercial use, and it's tamper resistant, with built-in shutters that block most foreign objects.

Features

• 20A, 125VAC, NEMA 5-20R duplex receptacle
• USB Type-C (3A max) + USB Type-A (2.4A max), 5.1A / 25+ W combined at 5VDC
• Smart chip adjusts charging to each connected device
• Tamper-resistant (TR) shutters

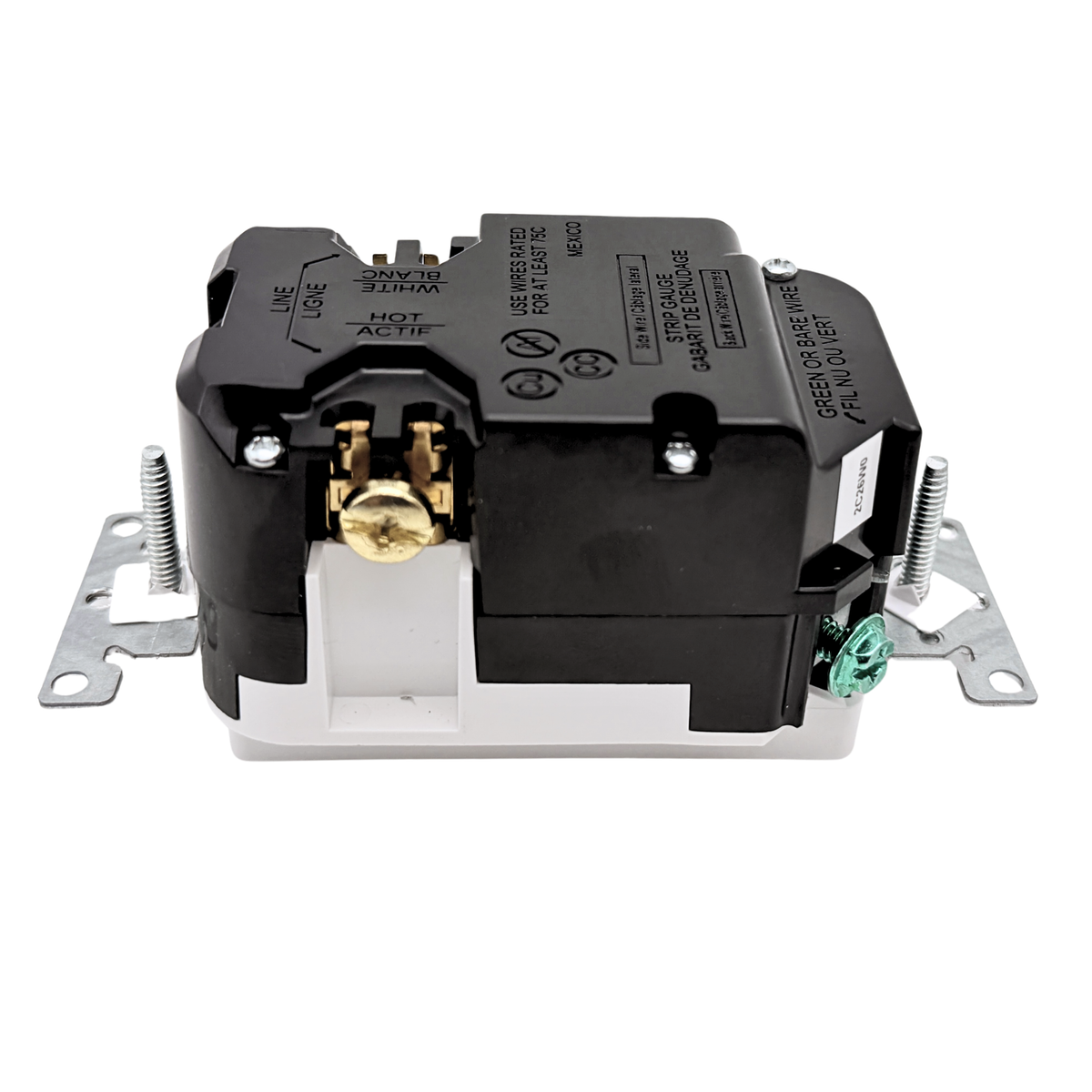

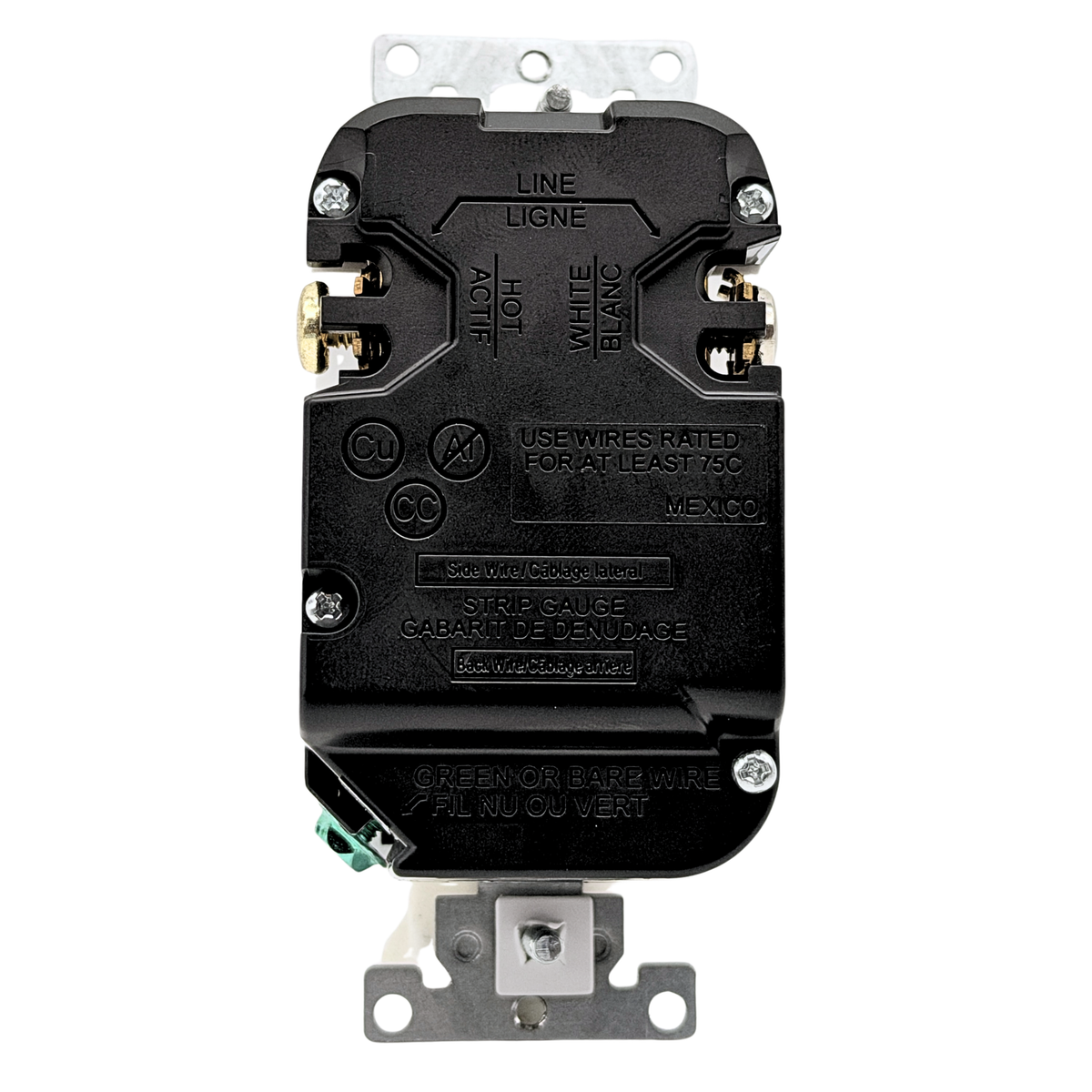

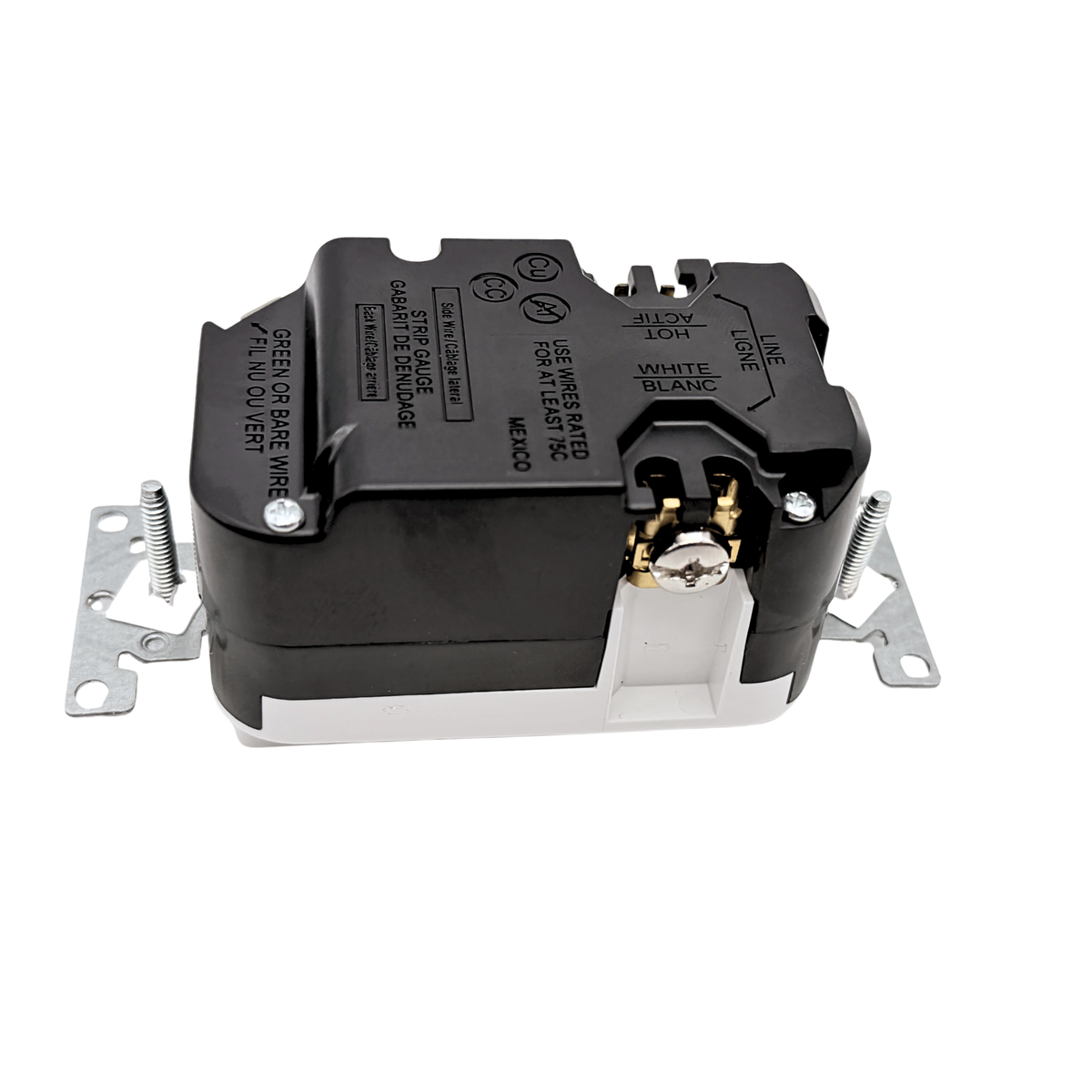

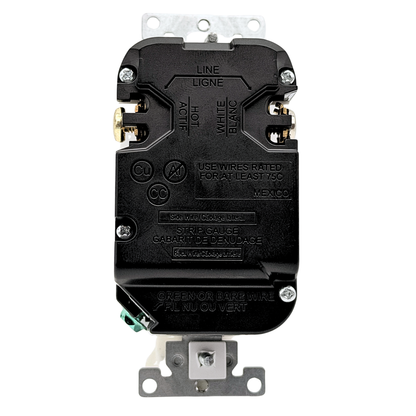

• Side and back wiring, 14-12 AWG copper, green ground screw
• Compatible with USB 3.0, 2.0 and 1.1 devices
• Fits Decora and Decora Plus wallplates (sold separately)
• cCSAus listed, UL 498 / UL 1310, NOM, FCC Part 15 Class B
• Leviton 2-year limited warranty

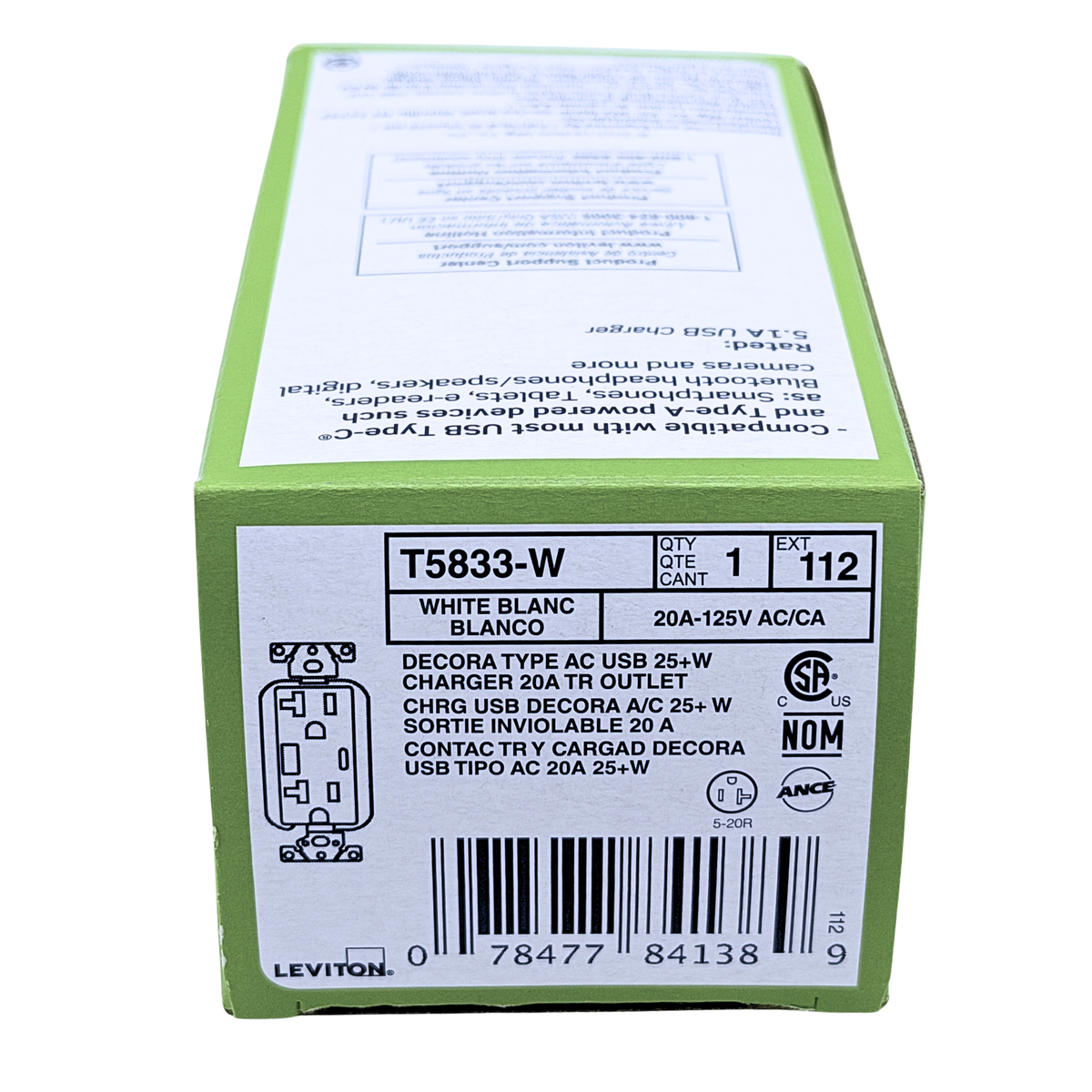

• Brand new in the original Leviton box

Uses

Kitchens, bedrooms, home offices, living rooms, dorms, hotel rooms, waiting areas and any 15A or 20A circuit where people need to charge phones, tablets, earbuds and other USB devices.

Most Common Use

Replacing a standard outlet next to a bed, desk or kitchen counter so phones and tablets charge right from the wall.

Important: This device is deeper than a standard outlet because of the built-in USB charger. Make sure your wall box has enough room for the device and the wires. Use copper wire only.

Note: Leviton has replaced this model with a newer version (AC2X3-W). This listing is the original T5833-W, new in box.

Why Buy From Us

With 24+ years of experience in the electrical industry, we know the products we sell and we're happy to answer your questions before you buy. Same-day handling, insured shipping, 30-day returns, and a 12-month warranty handled directly by us.

Shipping

Ships same day, carefully packaged and insured.

Note

Installation should be performed by a qualified person in accordance with local codes. Always turn off the breaker before working on an outlet.
