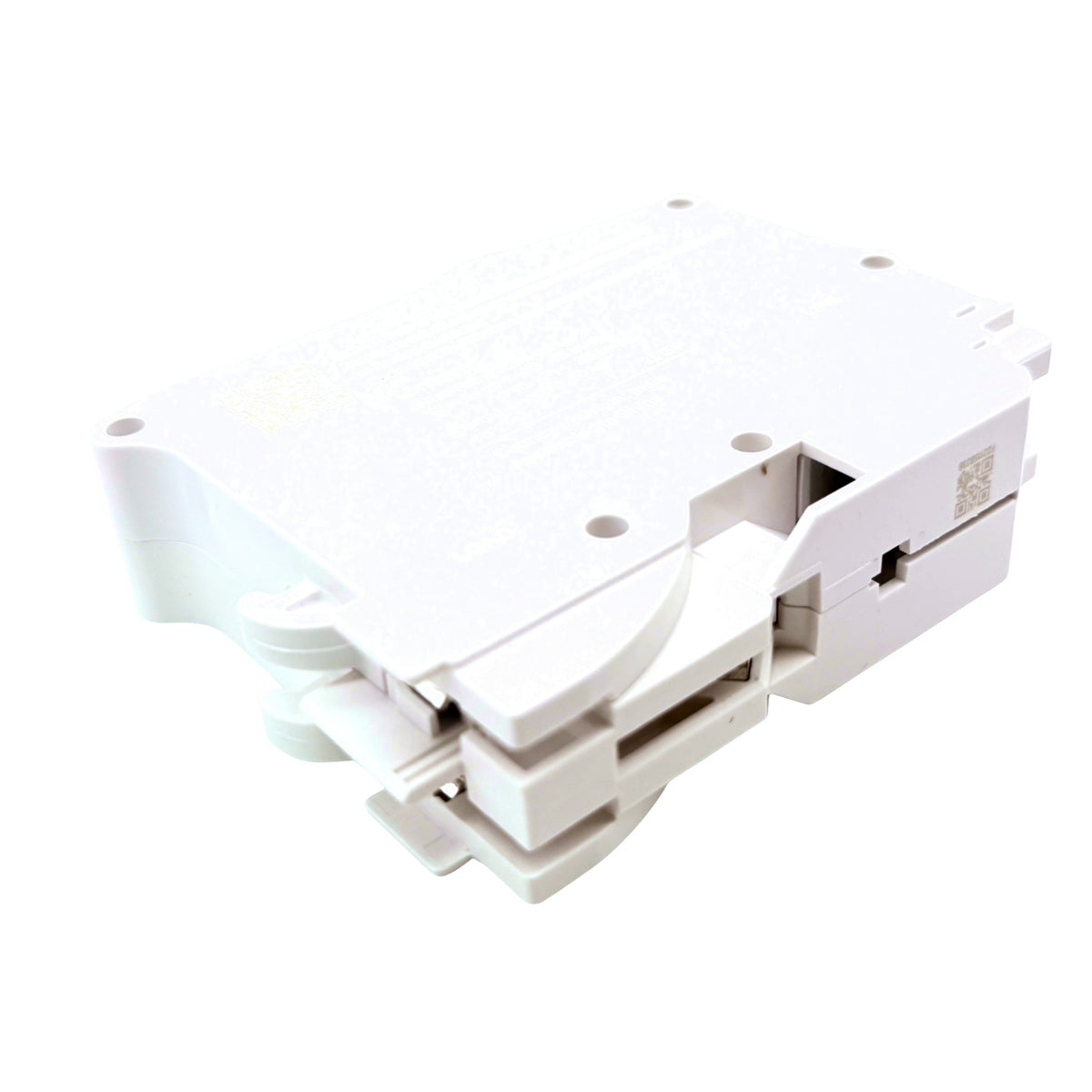

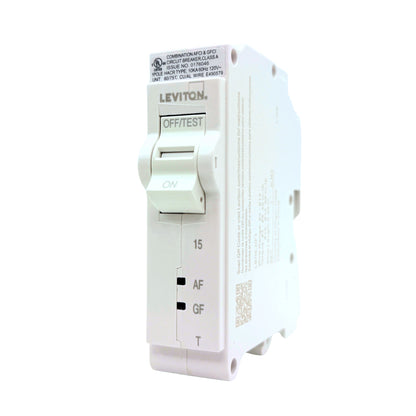

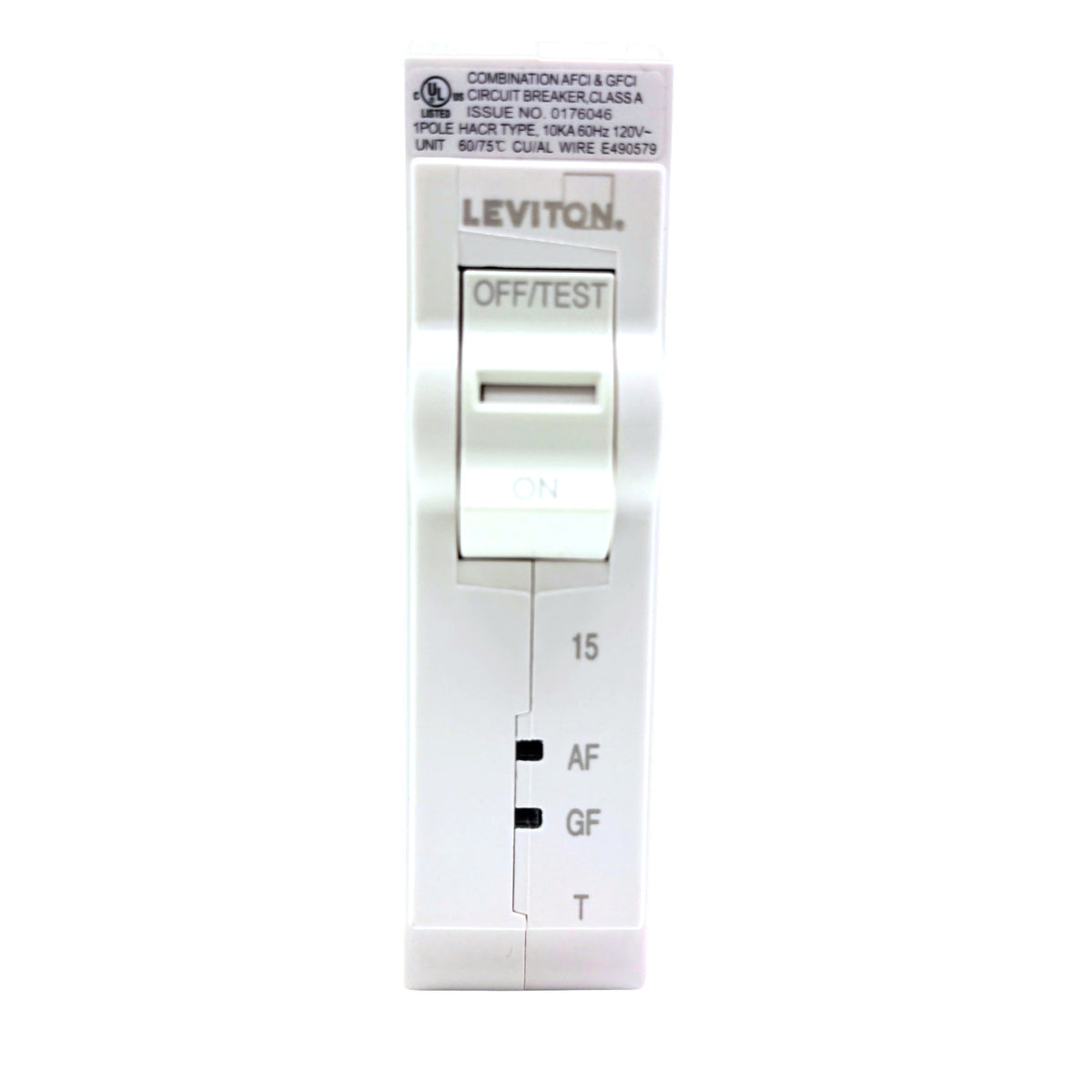

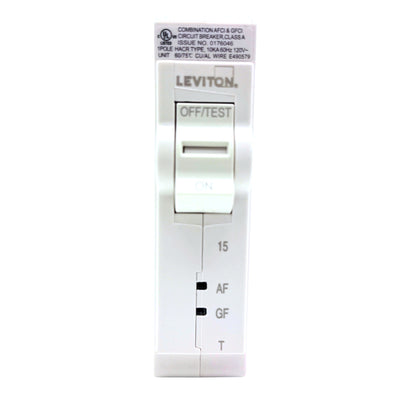

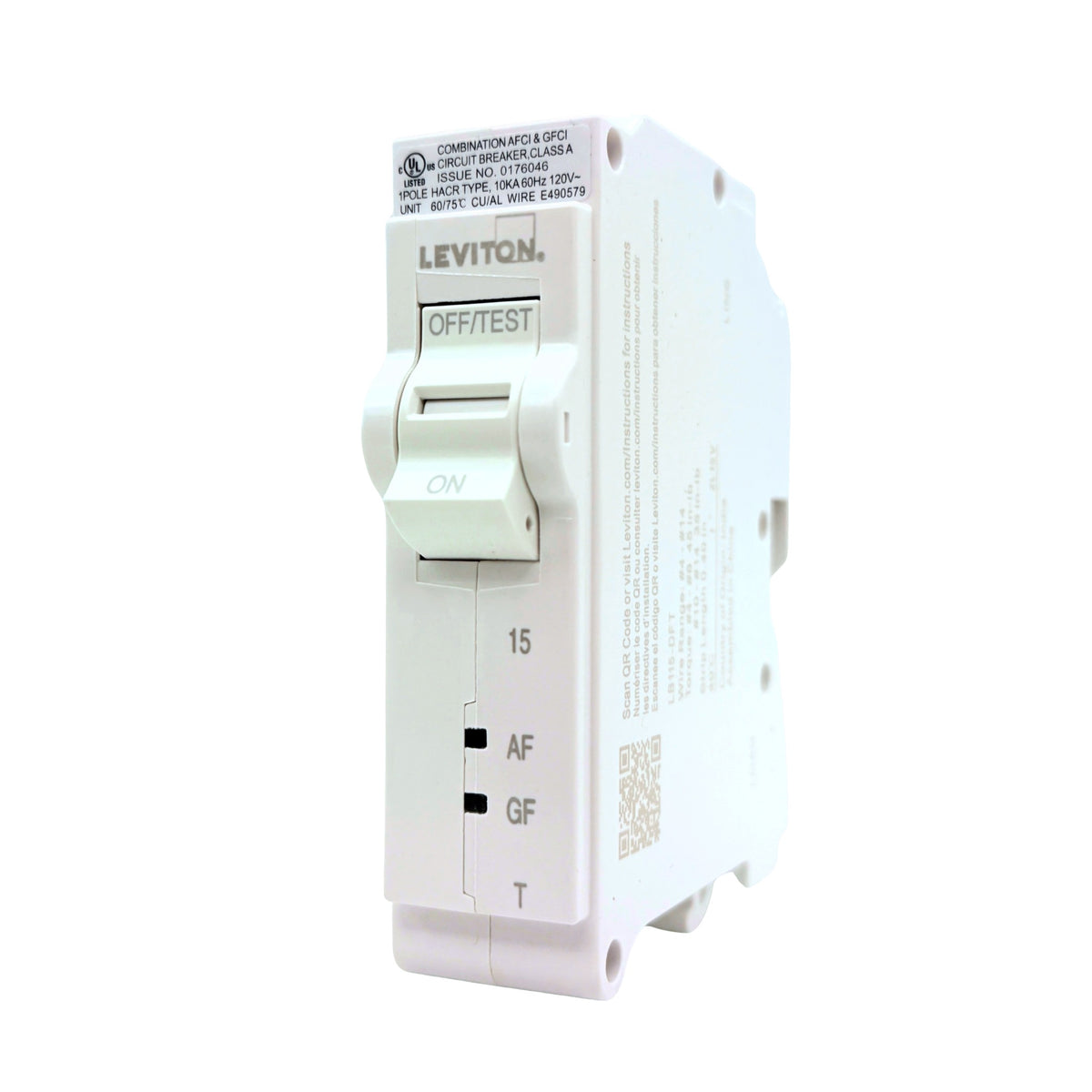

Leviton LB115-DFT 15 Amp Single-Pole Dual Function AFCI/GFCI Circuit Breaker, Plug-On

The Leviton LB115-DFT is a brand new 15 Amp, 1-pole, 120V dual function AFCI/GFCI circuit breaker for Leviton load centers. One breaker gives you two kinds of protection: arc-fault protection against electrical fires and ground-fault protection against electric shock, plus standard thermal-magnetic overload and short-circuit protection.

Two Protections in One Breaker

Many circuits now need both AFCI and GFCI protection, like dishwashers and laundry areas. Instead of pairing an AFCI breaker with a GFCI receptacle, the LB115-DFT covers both in one device, right at the panel. Fewer parts, a cleaner install, and the whole circuit is protected.

All Plug-On: No Pigtails, No Breaker Wiring

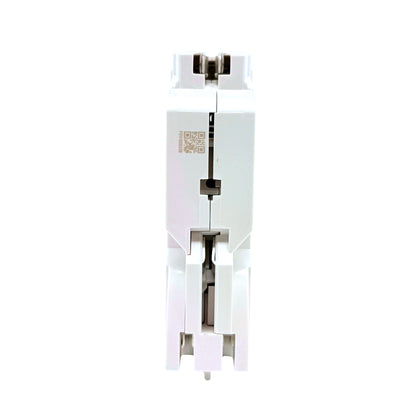

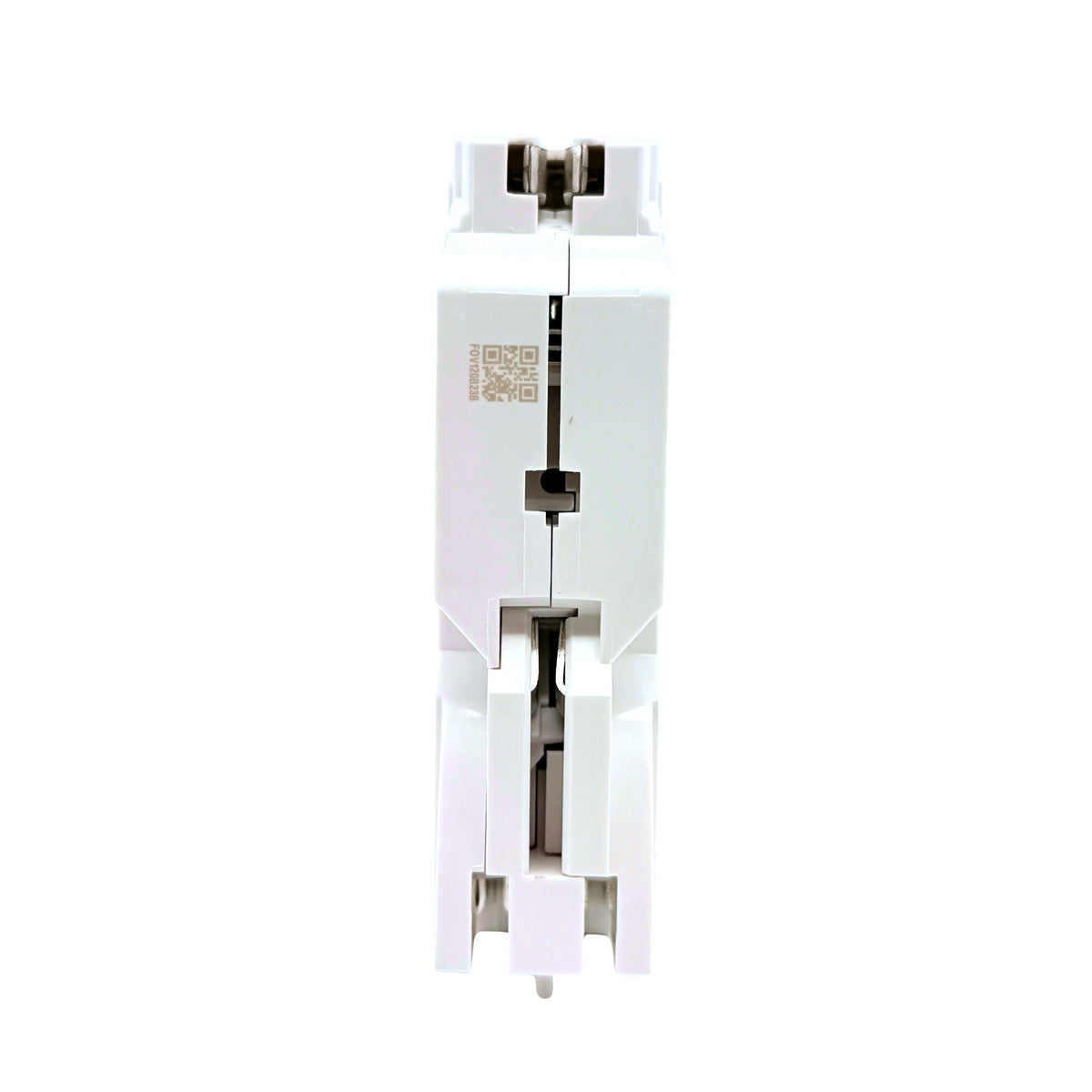

Leviton's all plug-on design means the circuit wires land on the load center, not on the breaker. The breaker simply plugs in. The whole panel can be wired at rough-in before any breakers are installed.

Smart Trip Indicators

Separate AF and GF LEDs show whether an arc fault or a ground fault tripped the breaker, and they stay lit even after the trip. Leviton's reset lockout keeps the breaker from resetting if arc-fault or ground-fault protection has been compromised.

Features

• Dual function: combination AFCI + Class A GFCI protection
• 15A, 1-pole, 120VAC, 10kA interrupting rating
• Thermal-magnetic trip for overload and short-circuit protection
• All plug-on installation: no pigtail, no wires on the breaker
• AF and GF LED indicators that stay lit after a trip
• Reset lockout if protection is compromised
• Rocker-style switch, easier to operate than a standard toggle
• HACR rated, UL Listed
• Brand new

Size

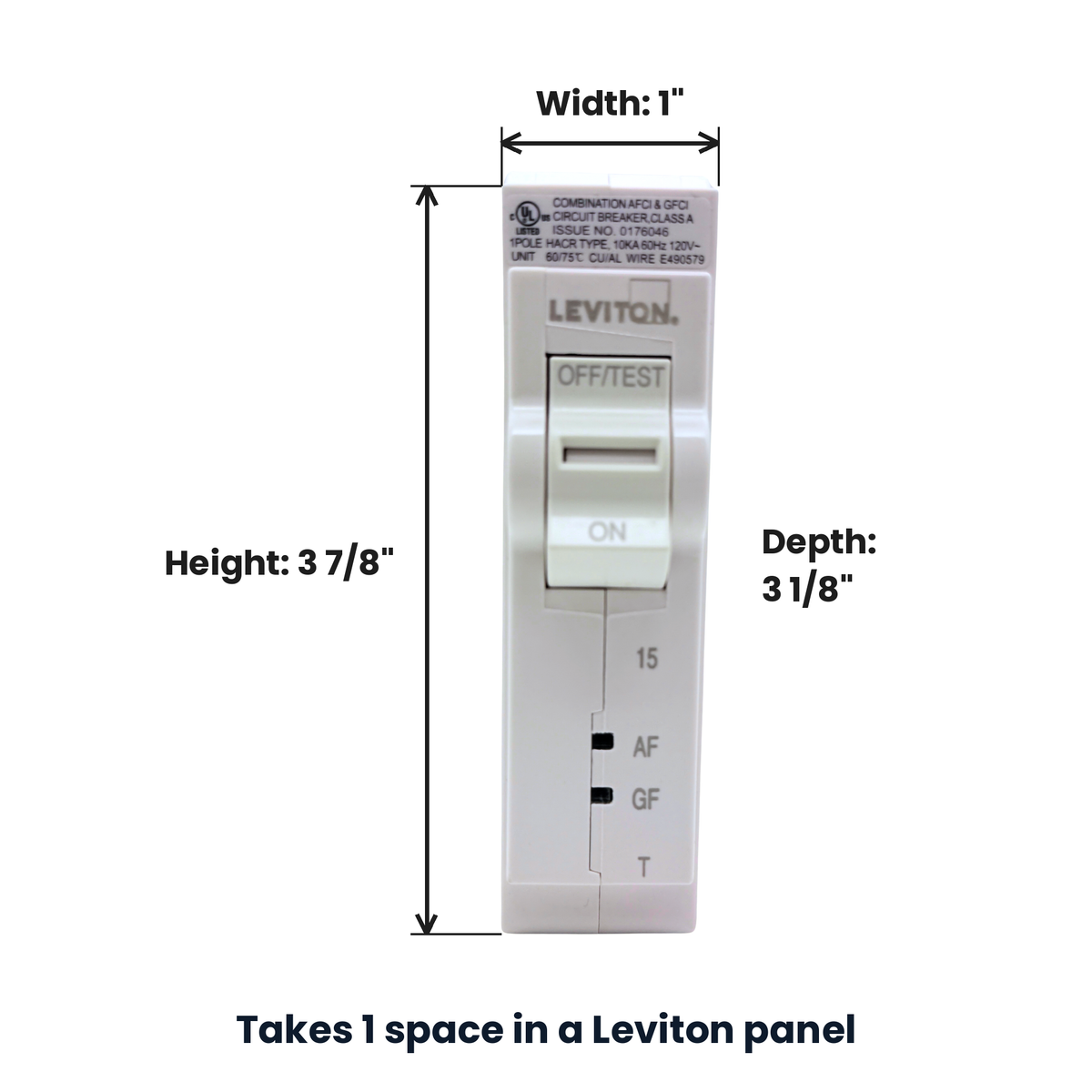

1" wide, about 3 7/8" tall, and 3 1/8" deep. It takes one space in a Leviton load center.

Uses

Dishwasher circuits, laundry areas, and other 15A dwelling circuits where both AFCI and GFCI protection are required.

Most Common Use

15A circuits in homes with a Leviton load center where current code calls for both arc-fault and ground-fault protection, such as a dishwasher circuit. Requirements vary by local code.

Compatibility: This breaker is designed for Leviton load centers only. It does not fit Square D, Eaton, Siemens, GE, or other brands' panels. Check the label inside your panel door before ordering. If you're unsure, send us a photo of your panel label and we'll help you confirm the fit.

Why Buy From Us

With 24+ years of experience in the electrical industry, we know the products we sell and we're happy to answer your questions before you buy. Same-day handling, insured shipping, 30-day returns, and a 12-month warranty handled directly by us.

Shipping

Ships same day, carefully packaged and insured.

Note

Installation should be performed by a qualified person in accordance with local codes. Always turn off the main breaker before working inside a panel.
