Leviton GFTR2-W 20 Amp Self-Test Slim GFCI Outlet, Tamper Resistant, SmartlockPro – White

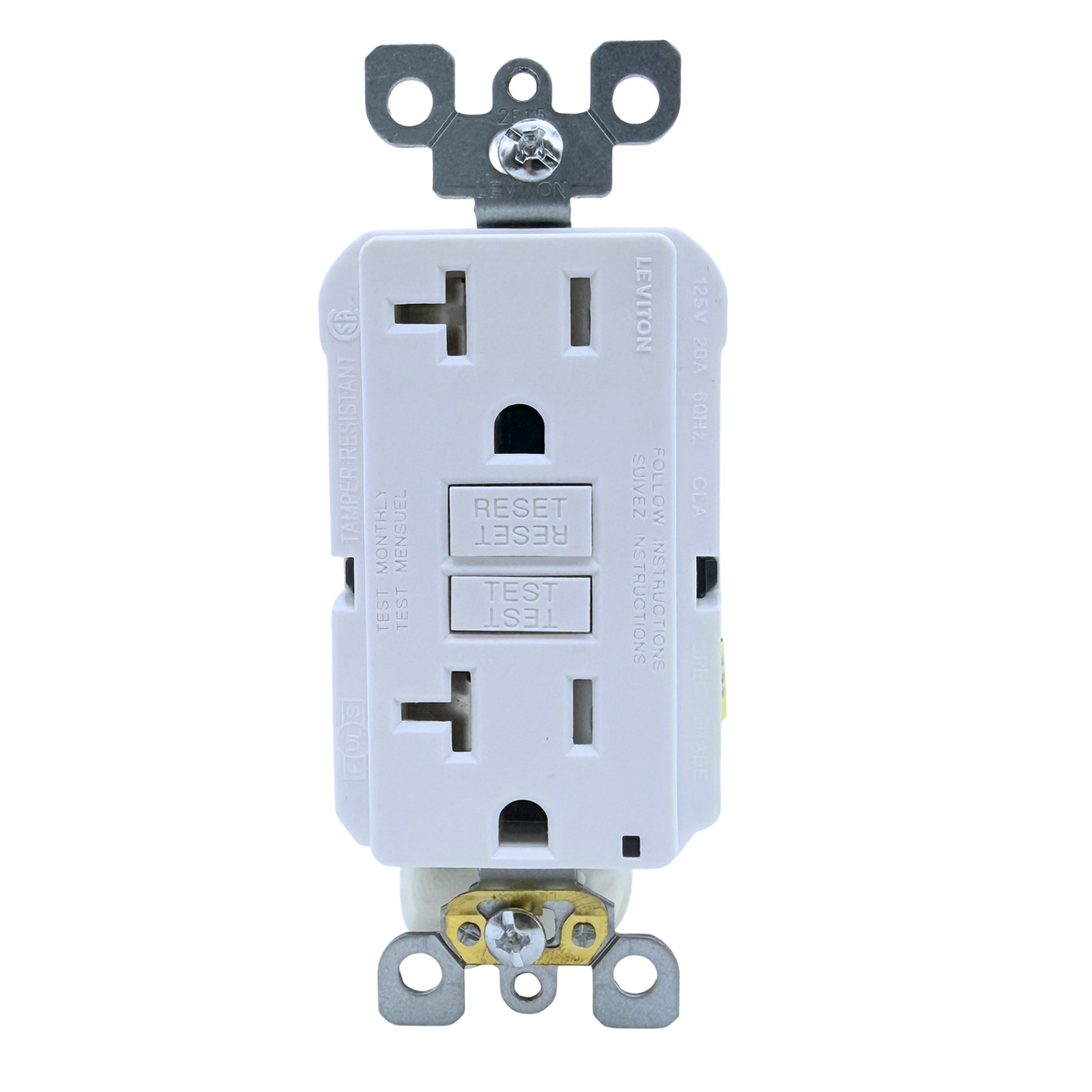

The Leviton GFTR2-W is a SmartlockPro® Slim self-testing, tamper-resistant duplex GFCI receptacle, rated 20 Amp, 125 Volt, in white. Its reduced-depth design makes it easier to install in any electrical box, even shallow ones, and its automatic self-test keeps checking that your circuit is still protected, so you never have to guess.

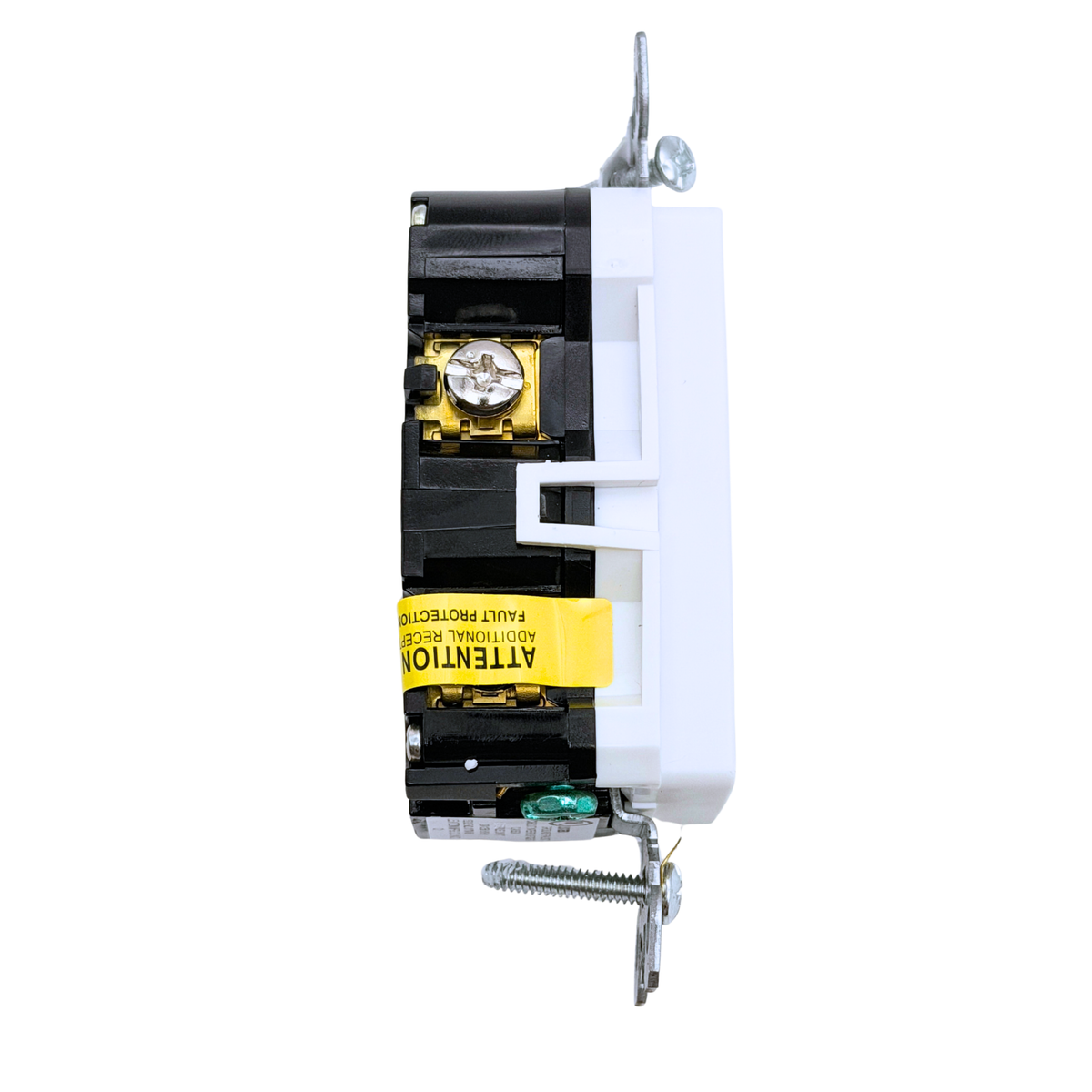

Slim Design: Easier to Fit in Crowded Boxes

Kitchens and bathrooms often have boxes full of wires. Leviton designed the SmartlockPro Slim with reduced depth, so there's more room for the conductors and less fighting to fold them back into the box. Faster, cleaner installs for homeowners and pros.

It Tests Itself

The GFTR2-W runs an automatic self-test periodically and tests itself within 3 seconds of power-up. Its patented Lockout feature prevents reset if the GFCI is damaged or miswired, and the status indicator light shows power and protection at a glance, including line/load reversal.

Built for Homes and Commercial Jobs

This is a residential/commercial specification-grade device, a GFCI electricians install in kitchens, bathrooms, laundry rooms, garages, restaurant kitchens, and commercial restrooms. The 20A outlet face (NEMA 5-20R) accepts both 15A and 20A plugs, and the 20A feed-through rating lets you protect other outlets downstream by wiring them to the LOAD terminals.

What's Included

• 1 Leviton GFTR2-W self-test GFCI receptacle (white)
• Mounting screws and self-grounding clip

Features

• SmartlockPro® Slim design with reduced depth
• Automatic self-test; tests within 3 seconds of initial power-up
• Patented Lockout: will not reset if damaged or miswired
• Status indicator light, including line/load reversal indication
• Tamper-resistant (TR) shutters
• 20A, 125V, 60 Hz duplex receptacle, NEMA 5-20R
• 20A feed-through: protects downstream outlets
• Class A GFCI (5 mA trip level), UL 943 Listed, CSA certified
• Improved immunity to high-frequency noise to reduce nuisance tripping

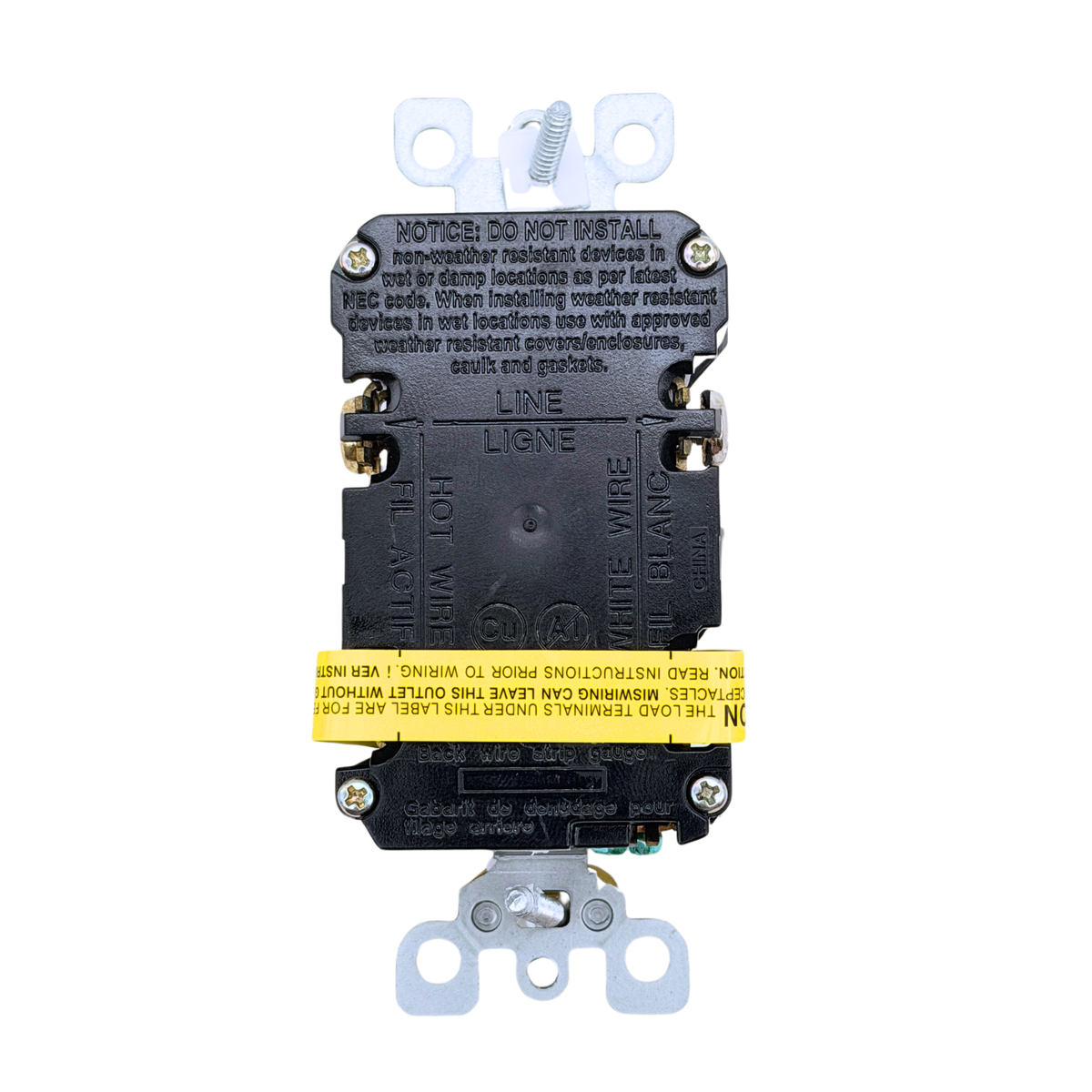

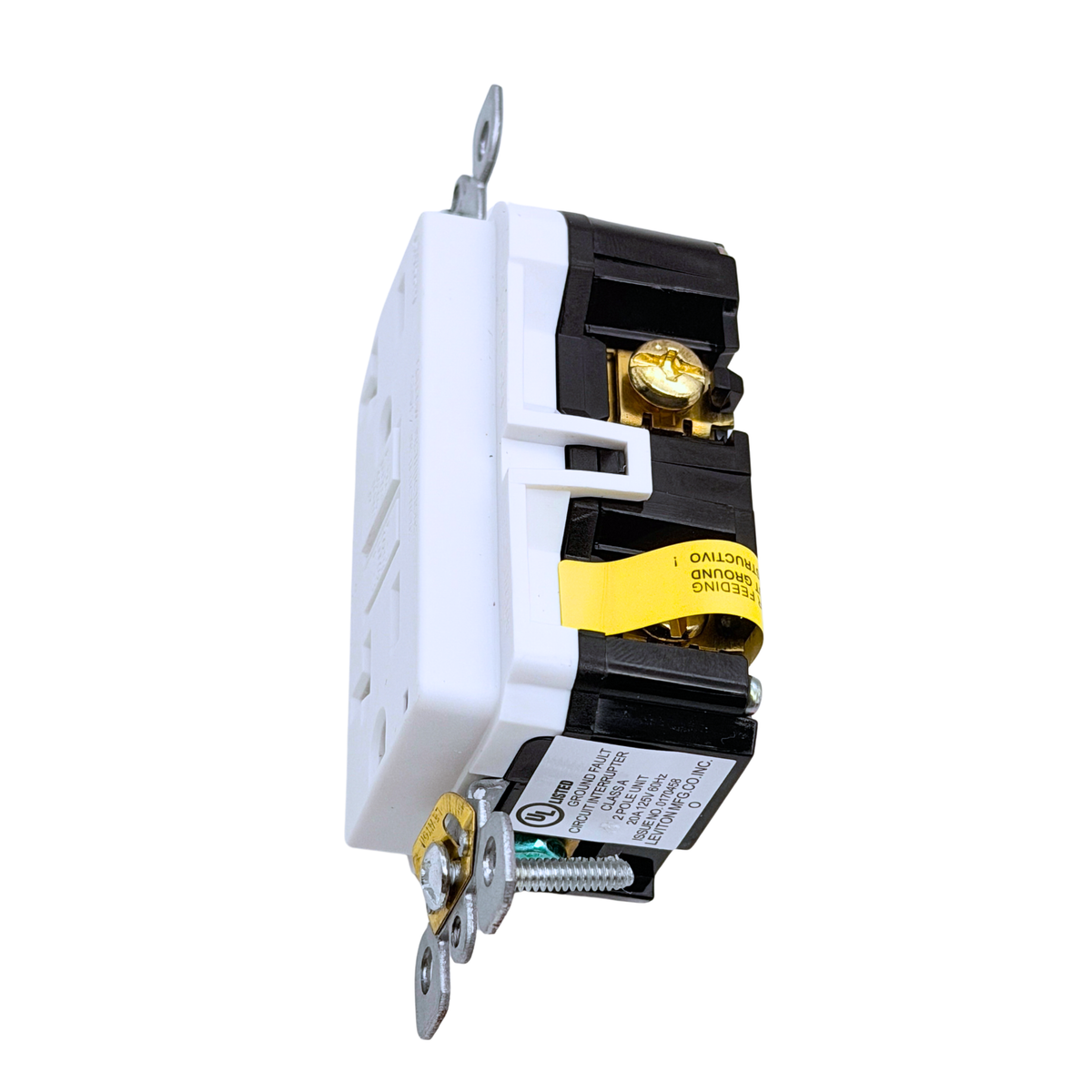

• Back-wire and side-wire terminals accept #14 to #10 AWG copper
• Self-grounding clip and green ground screw
• Compatible with Decora® devices and wall plates
• Brand new, white

Size

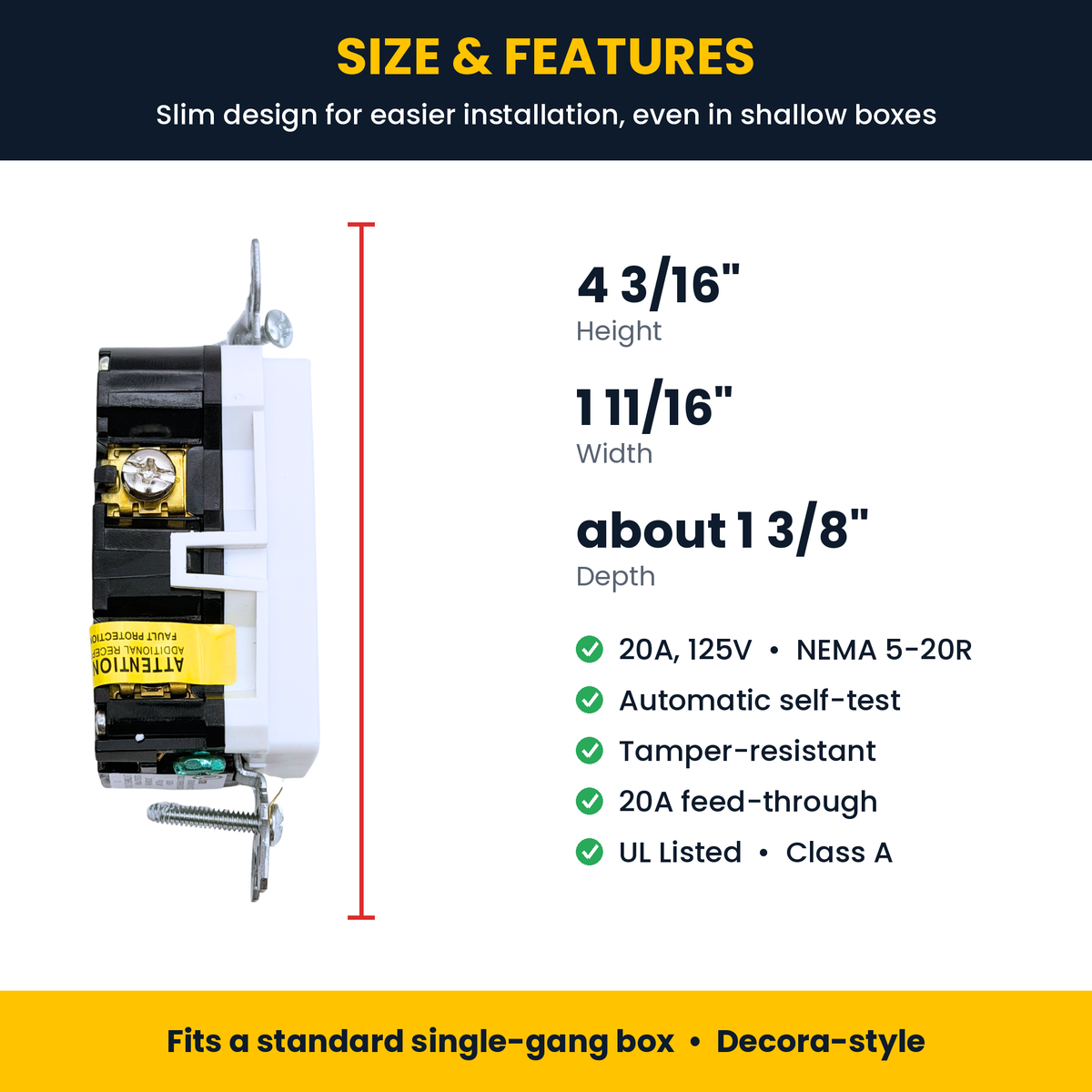

About 4 3/16" tall, 1 11/16" wide, and about 1 3/8" deep. It fits a standard single-gang electrical box and takes a standard decorator (Decora-style) wall plate.

Uses

Kitchens, bathrooms, laundry rooms, garages, unfinished basements, wet bar sinks, restaurant kitchens, commercial restrooms, and any indoor location that requires GFCI protection by code.

Most Common Use

Kitchen countertop and bathroom outlets on 20A circuits, and replacing old GFCIs in crowded boxes where a bulky device is hard to fit. Please verify that this device is correct for your circuit before ordering. If you're unsure, send us a message and we'll be glad to help.

Why Buy From Us

With 24+ years of experience in the electrical industry, we know the products we sell and we're happy to answer your questions before you buy. Same-day handling, insured shipping, 30-day returns, and a 12-month warranty handled directly by us.

Shipping

Ships same day, carefully packaged and insured.

Note

This model is not weather-resistant. For outdoor or damp locations, a WR-rated GFCI and an approved in-use cover are required. Installation should be performed by a qualified, licensed electrician in accordance with local codes.
