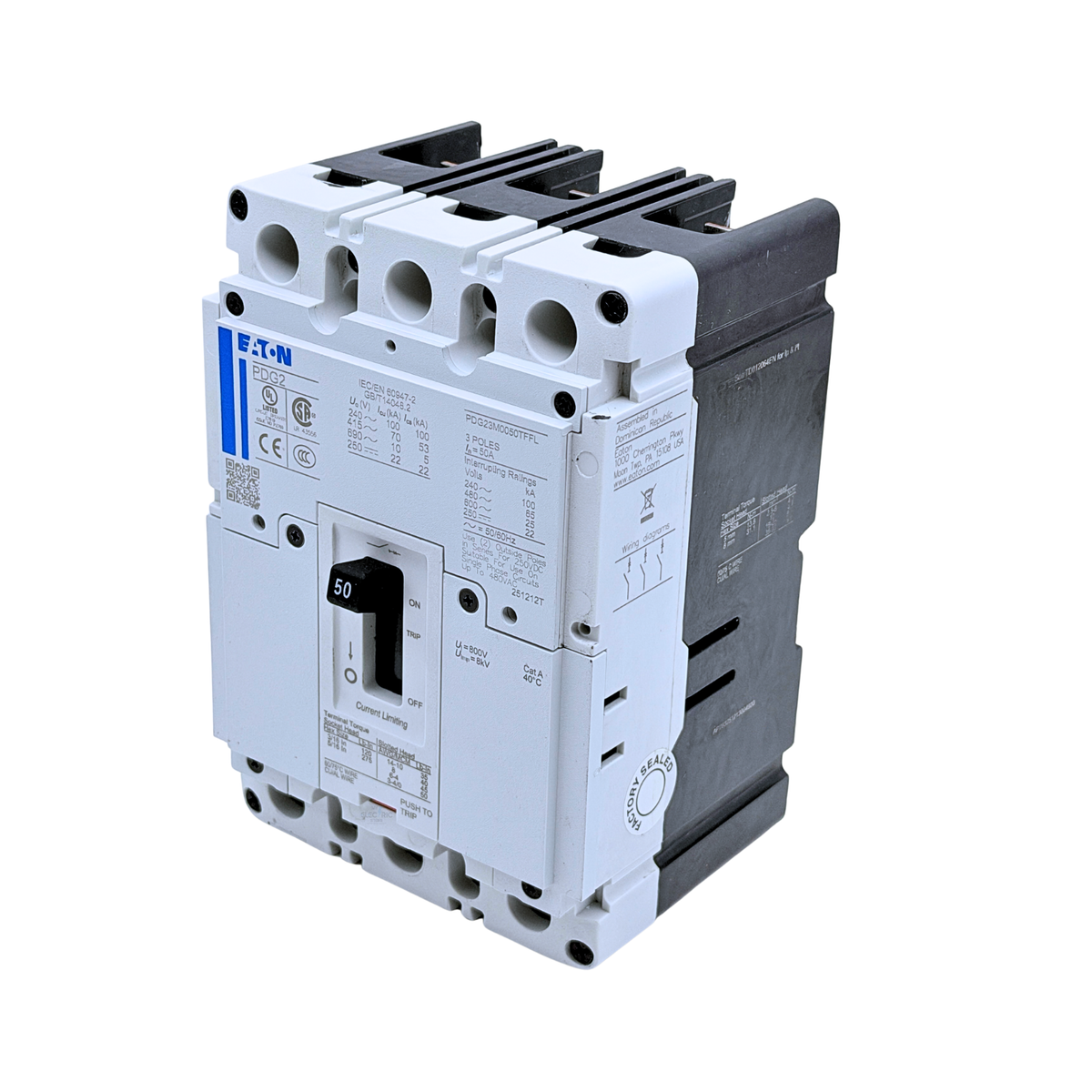

The Eaton PDG23M0050TFFL is a brand new, factory-sealed 50 Amp, 3-pole Power Defense molded case circuit breaker (MCCB), Frame 2, globally rated and rated 65kA at 480V. It is built for industrial and commercial power distribution, feeder protection, and equipment panels.
Power Defense: Eaton's Current MCCB Platform
Power Defense is Eaton's modern molded case breaker line. The PDG2 (Frame 2) is a compact, globally rated breaker certified to UL 489, CSA, IEC 60947-2, and CCC, so the same breaker works in North American and international equipment.
High Interrupting Rating

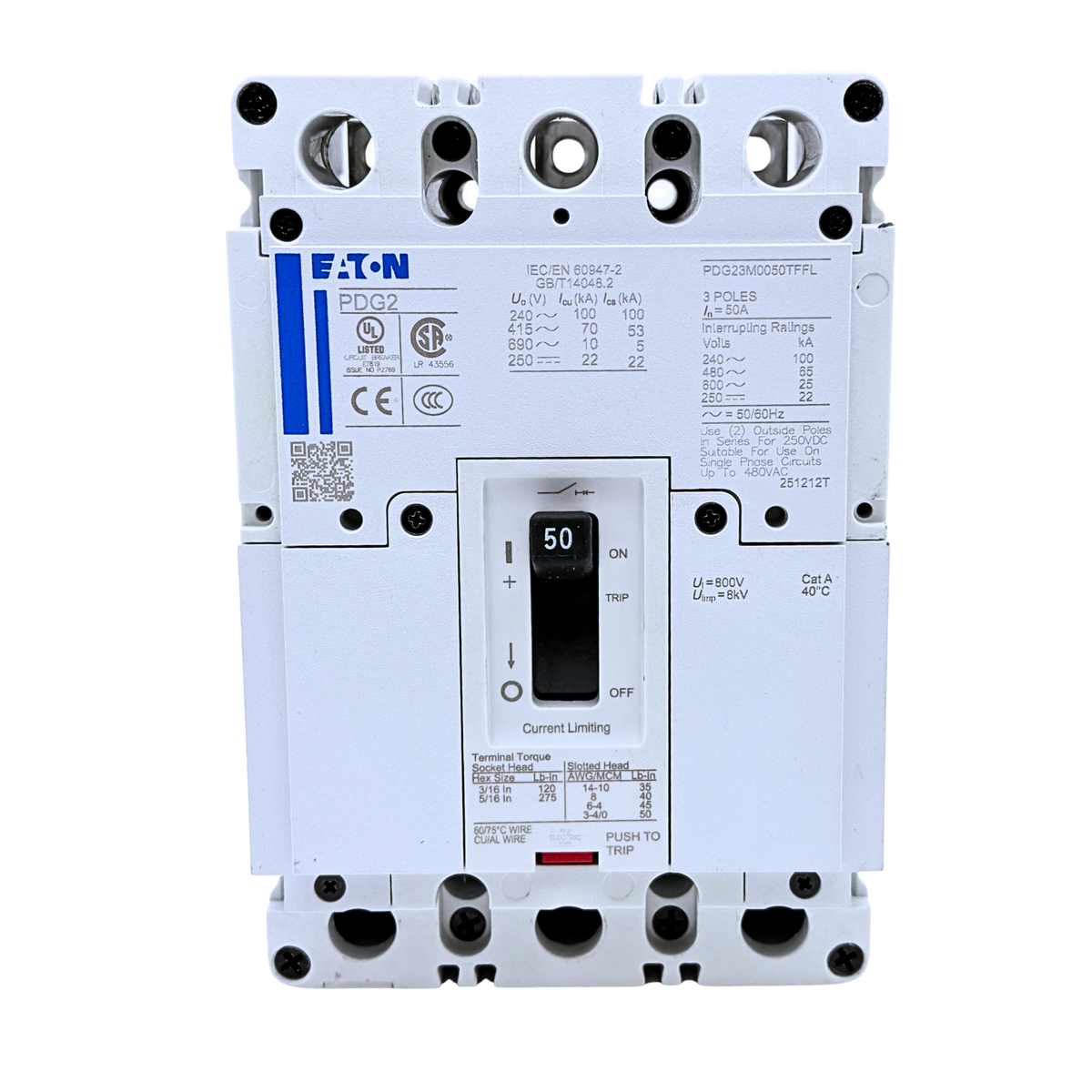

The "M" interrupting rating gives you 65kAIC at 480V and 100kAIC at 240V (UL), and 35kAIC at 600V (UL/CSA). That covers most commercial and light industrial systems with high available fault current.
Thermal-magnetic trip unit, fixed thermal / fixed magnetic (T-M Fxd-Fxd)

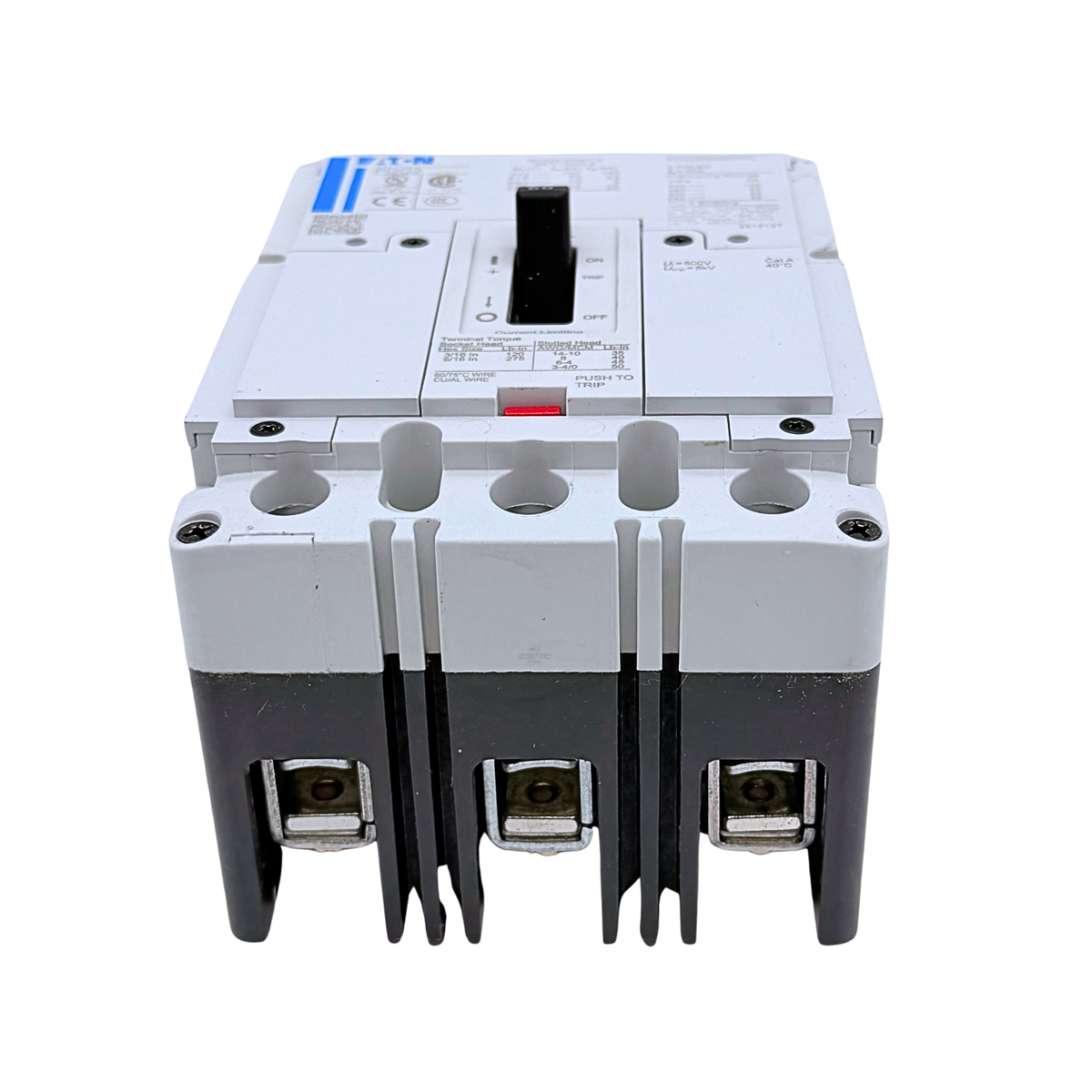

Standard terminals on the load side only (TFFL)
Frame 2 (PD2 Global), Class A
UL 489, CSA, IEC 60947-2, CCC Marked, RoHS compliant
Compatible with Eaton PDG2 Frame 2 accessories (handles, shunt trips, aux switches, terminal kits)

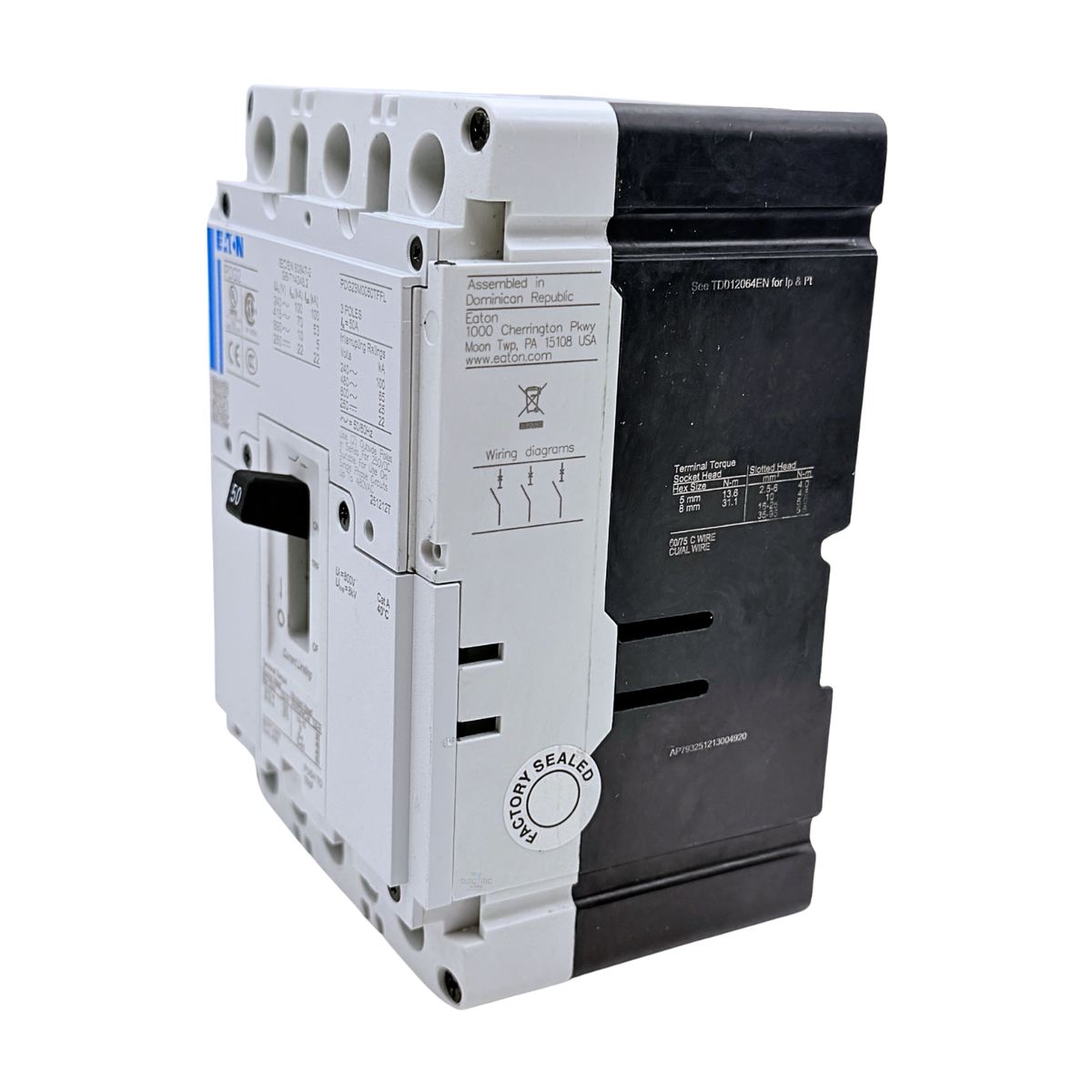

Brand new in original Eaton box, factory sealed

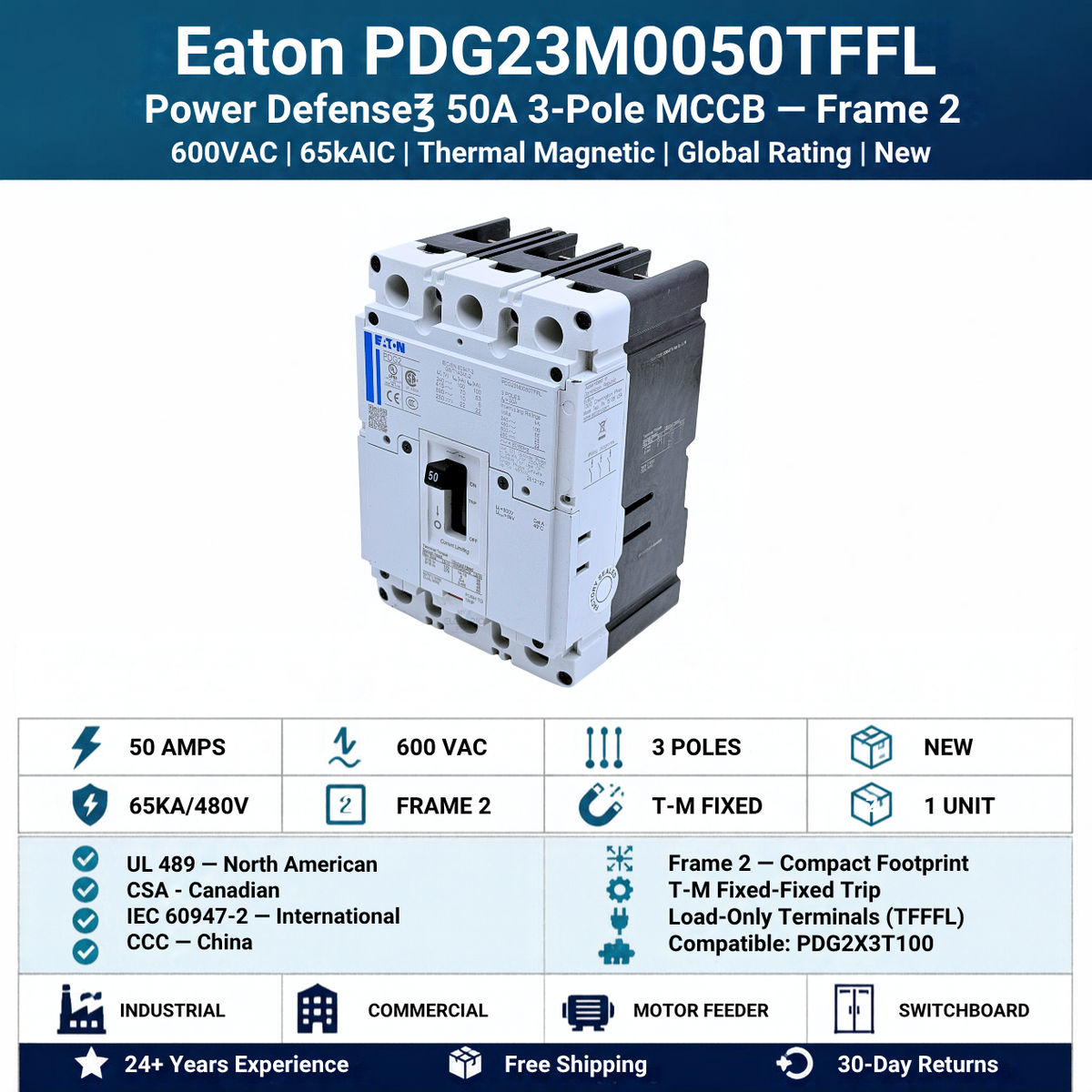

Specifications
Catalog number: PDG23M0050TFFL
UPC: 786679862285

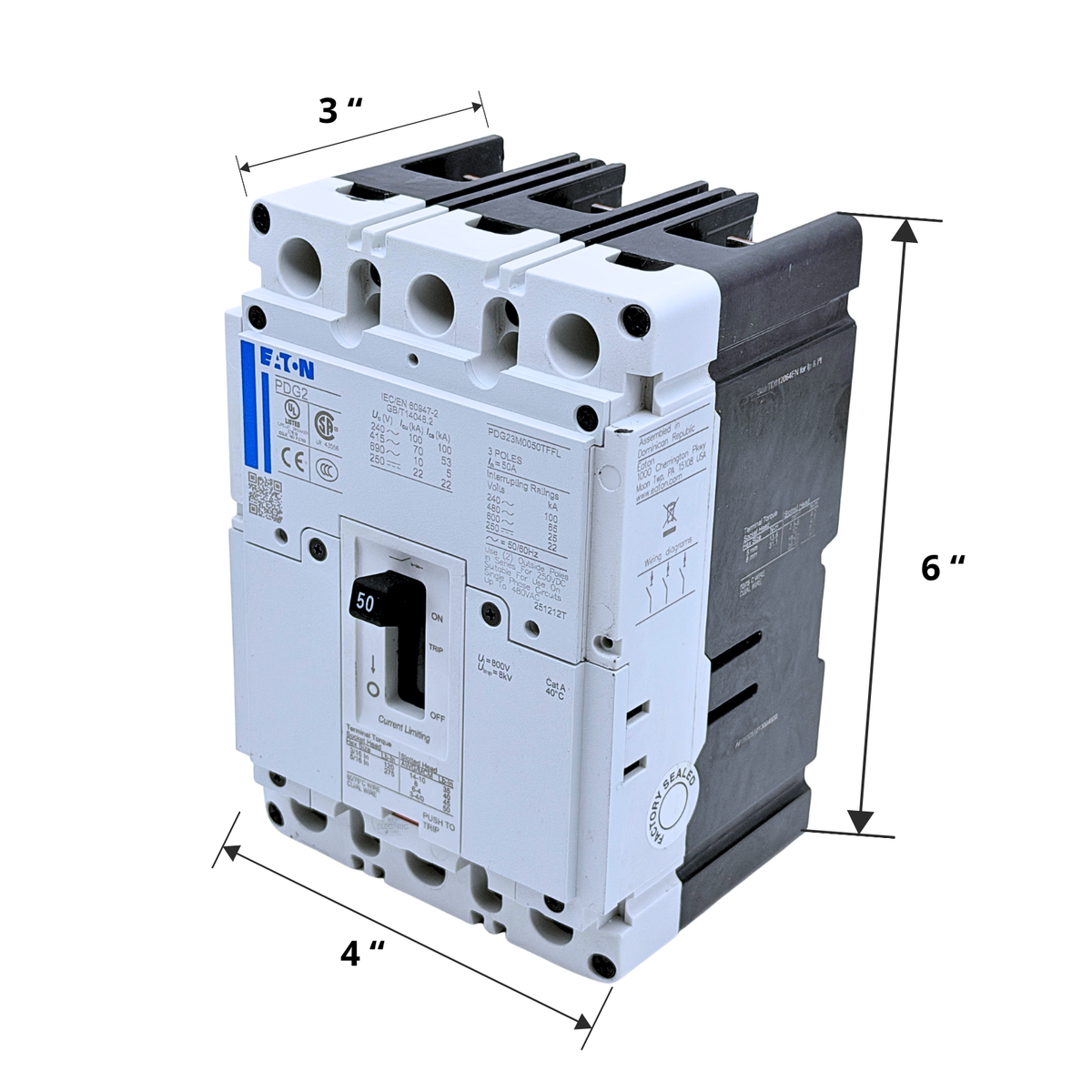

Size: about 4.1" wide x 6" tall x 3.5" deep (104.6 x 152.4 x 88.9 mm)
Weight: about 4 lb (1.82 kg)
Uses
Industrial control panels, commercial switchboards and panelboards, motor and equipment feeders, HVAC and machinery disconnects, and OEM equipment that calls for a 50A, 3-pole Eaton Power Defense Frame 2 breaker.

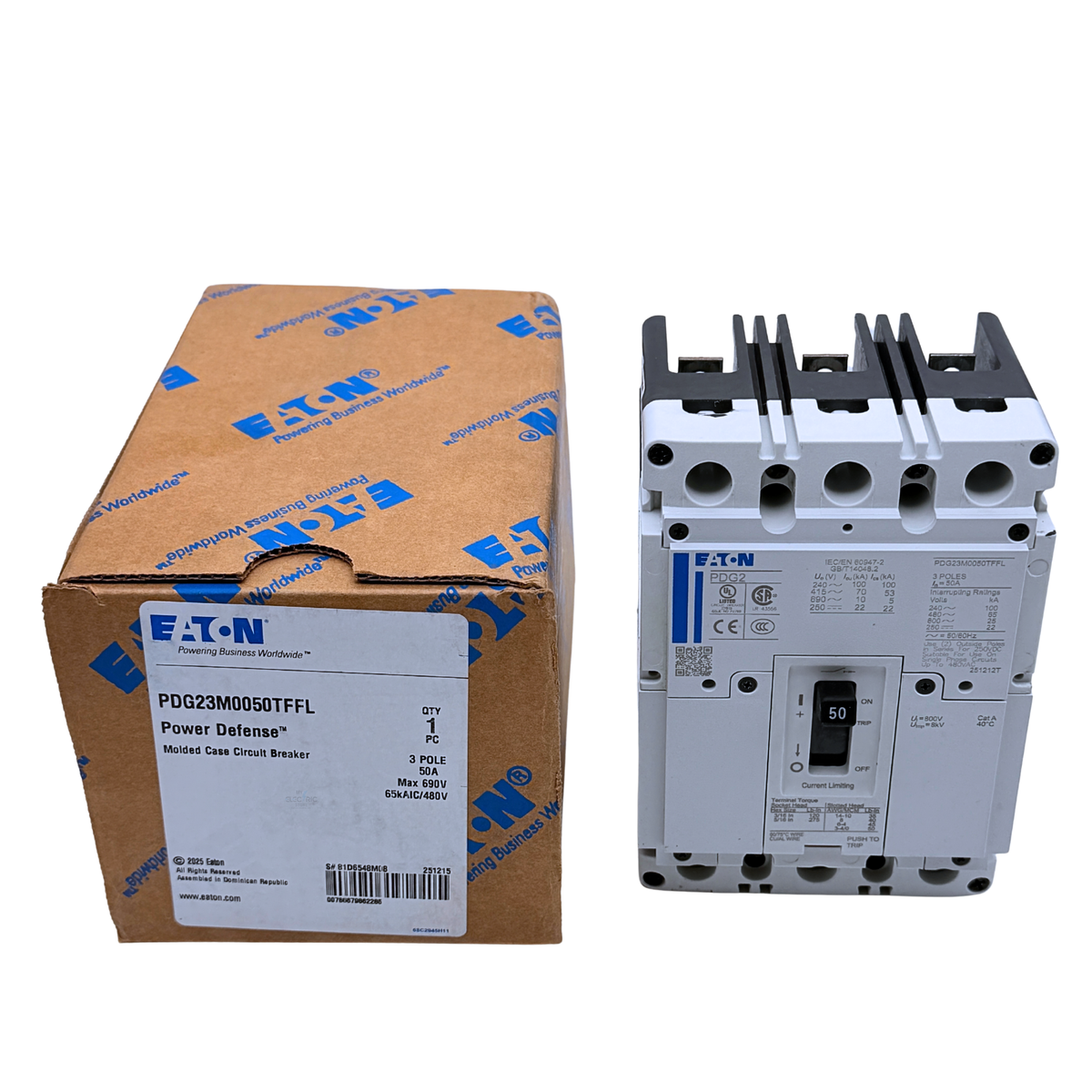

What's in the Box

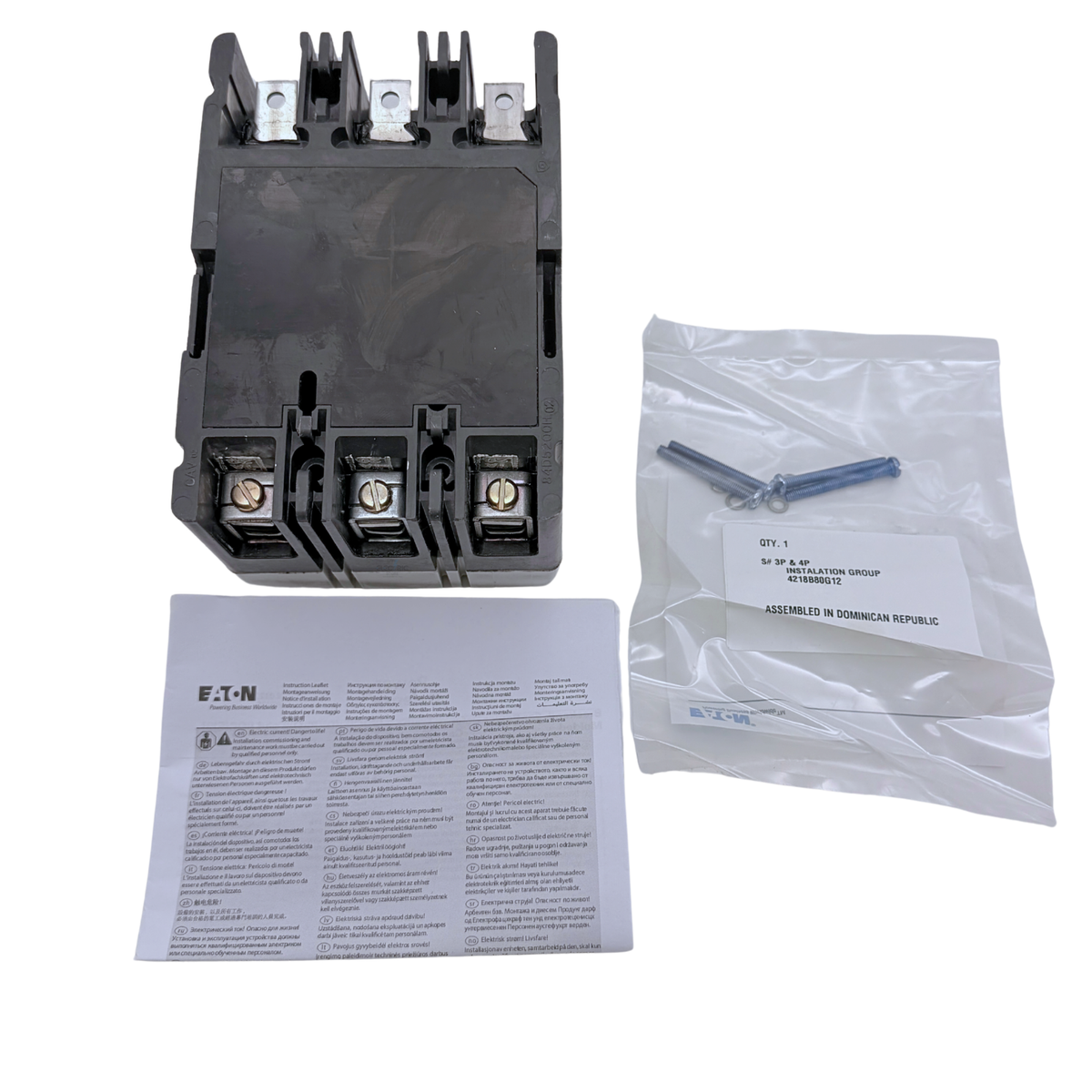

One (1) Eaton PDG23M0050TFFL breaker, mounting hardware, and Eaton installation instructions, as shipped by the factory.
Compatibility: Please match the full catalog number, frame, and terminal configuration to your equipment before ordering. Load-side-only terminals (TFFL) are standard on this model. If you're unsure, send us a photo of your existing breaker label or panel schedule and we'll help you confirm the fit.
Why Buy From Us
With 24+ years of experience in the electrical industry, we know the products we sell and we're happy to answer your questions before you buy. Same-day handling, insured shipping, 30-day returns, and a 12-month warranty handled directly by us.
Shipping
Ships same day, carefully packaged and insured.
Note
Installation should be performed by a qualified electrician in accordance with the NEC and local codes. Always de-energize and lock out equipment before working on it.
