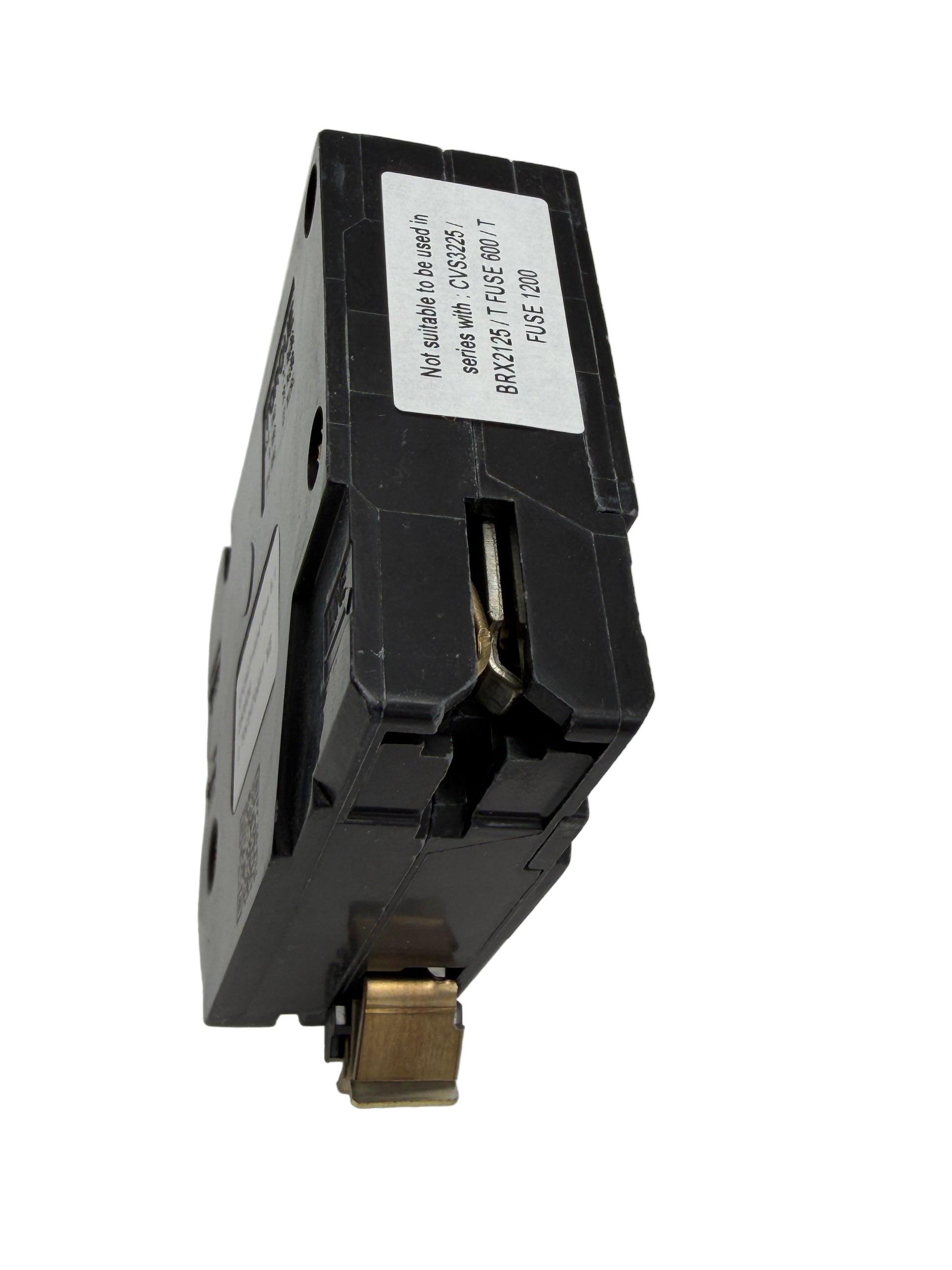

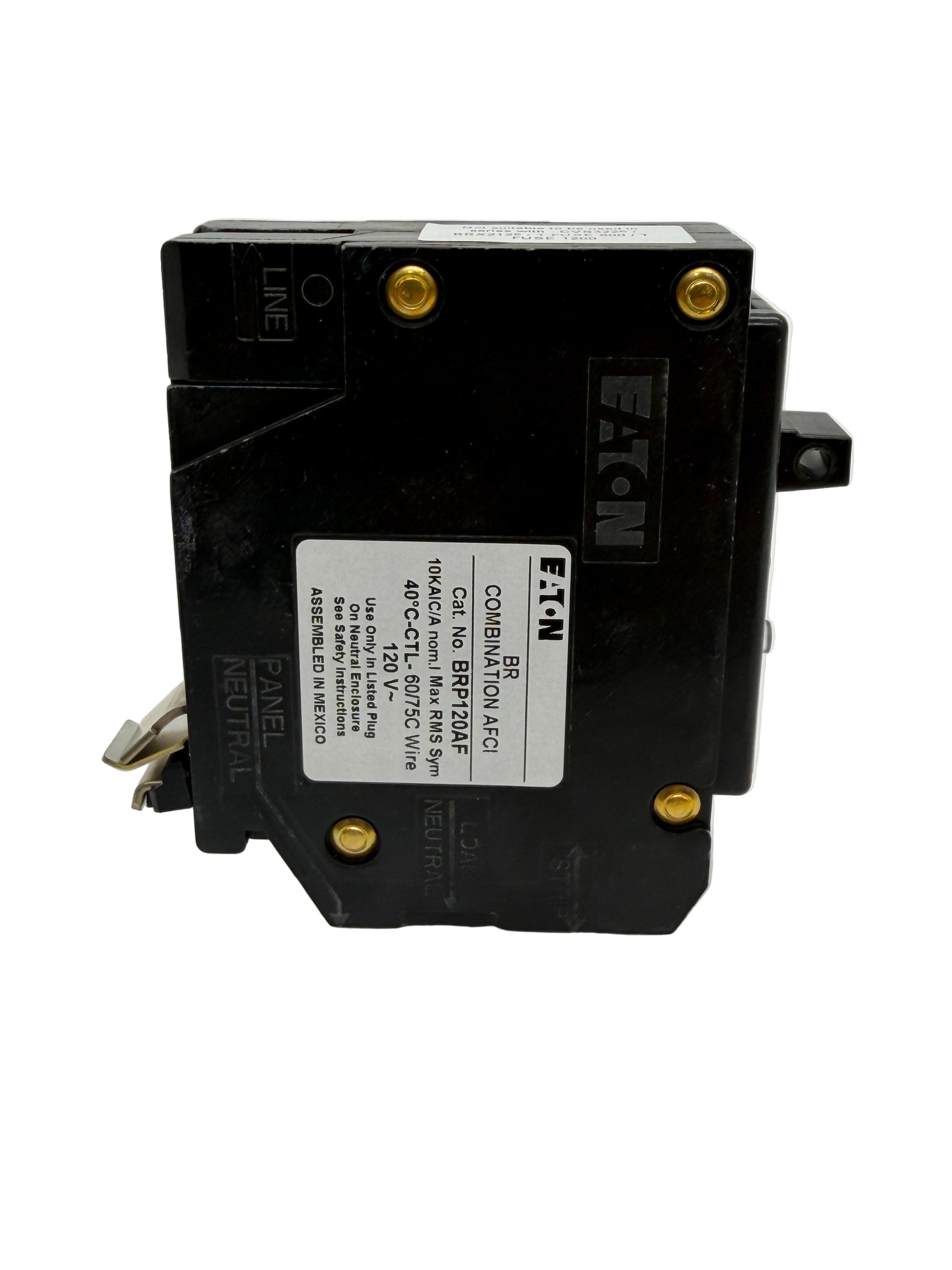

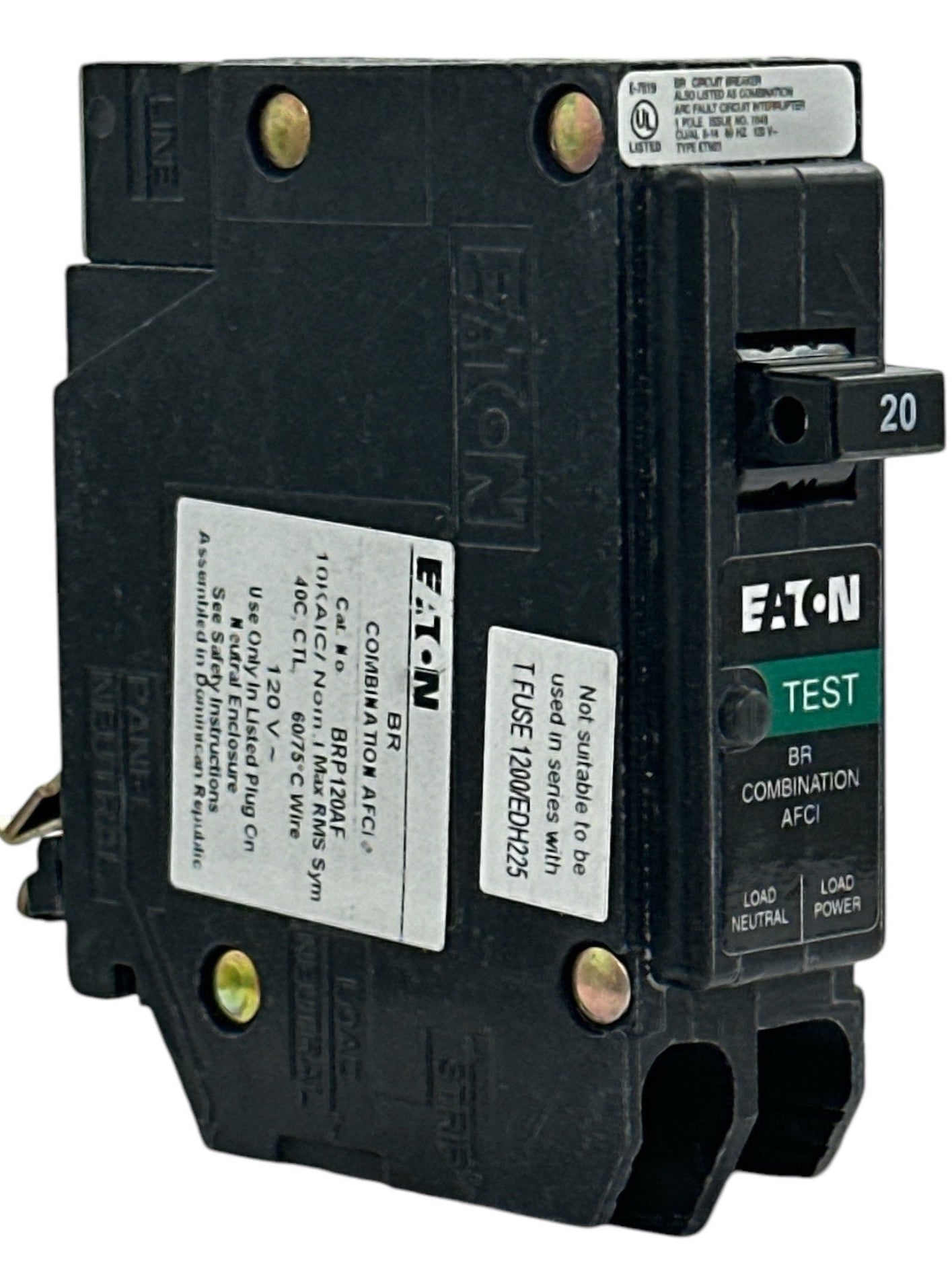

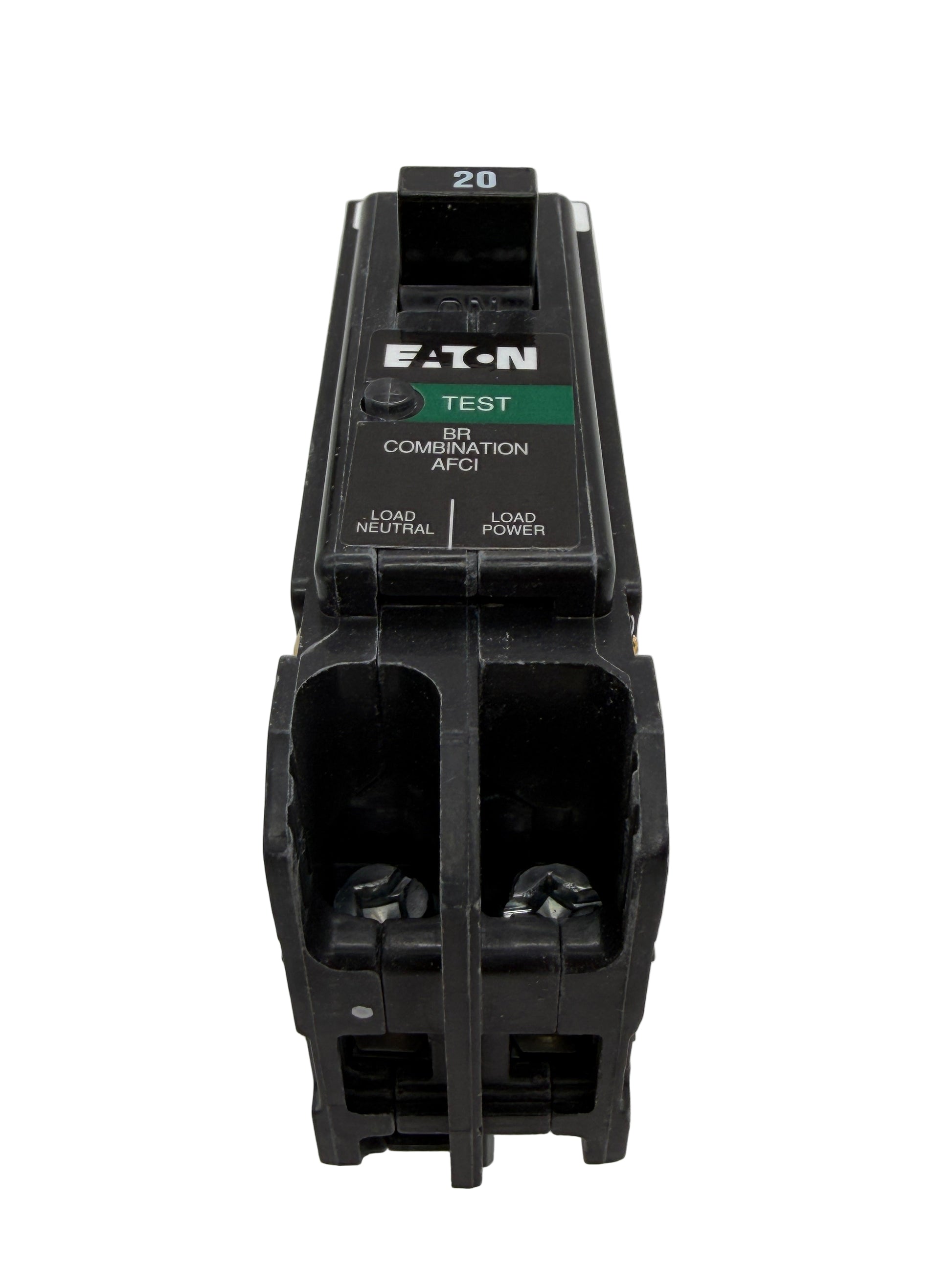

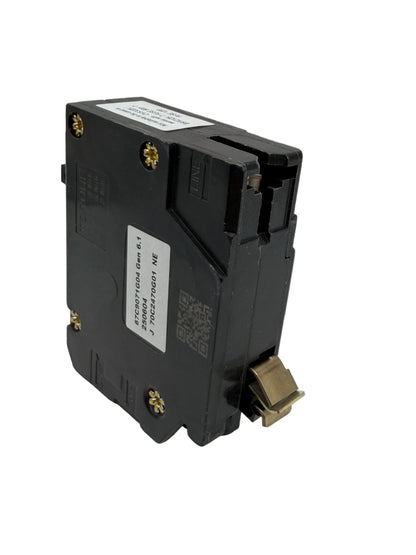

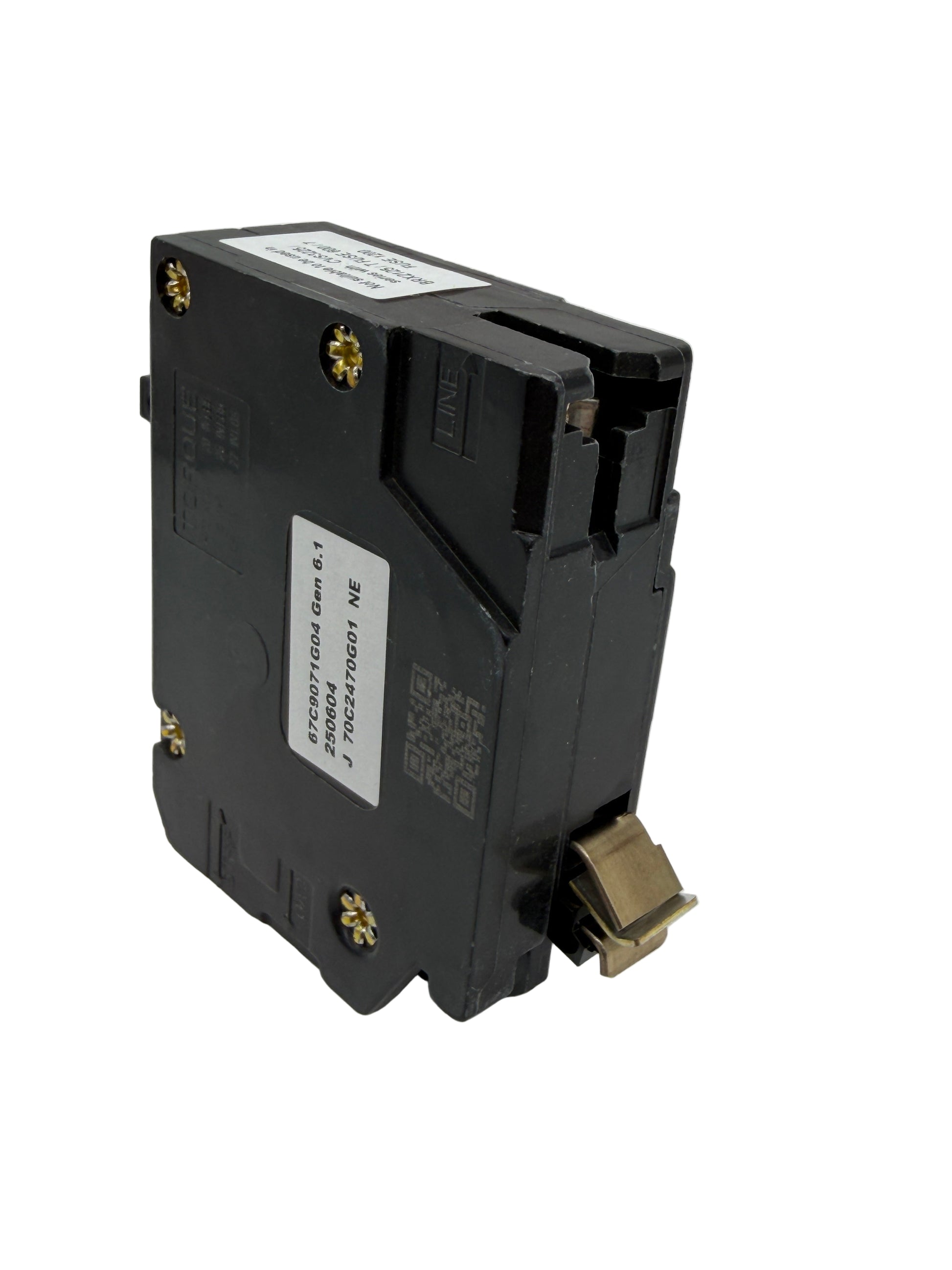

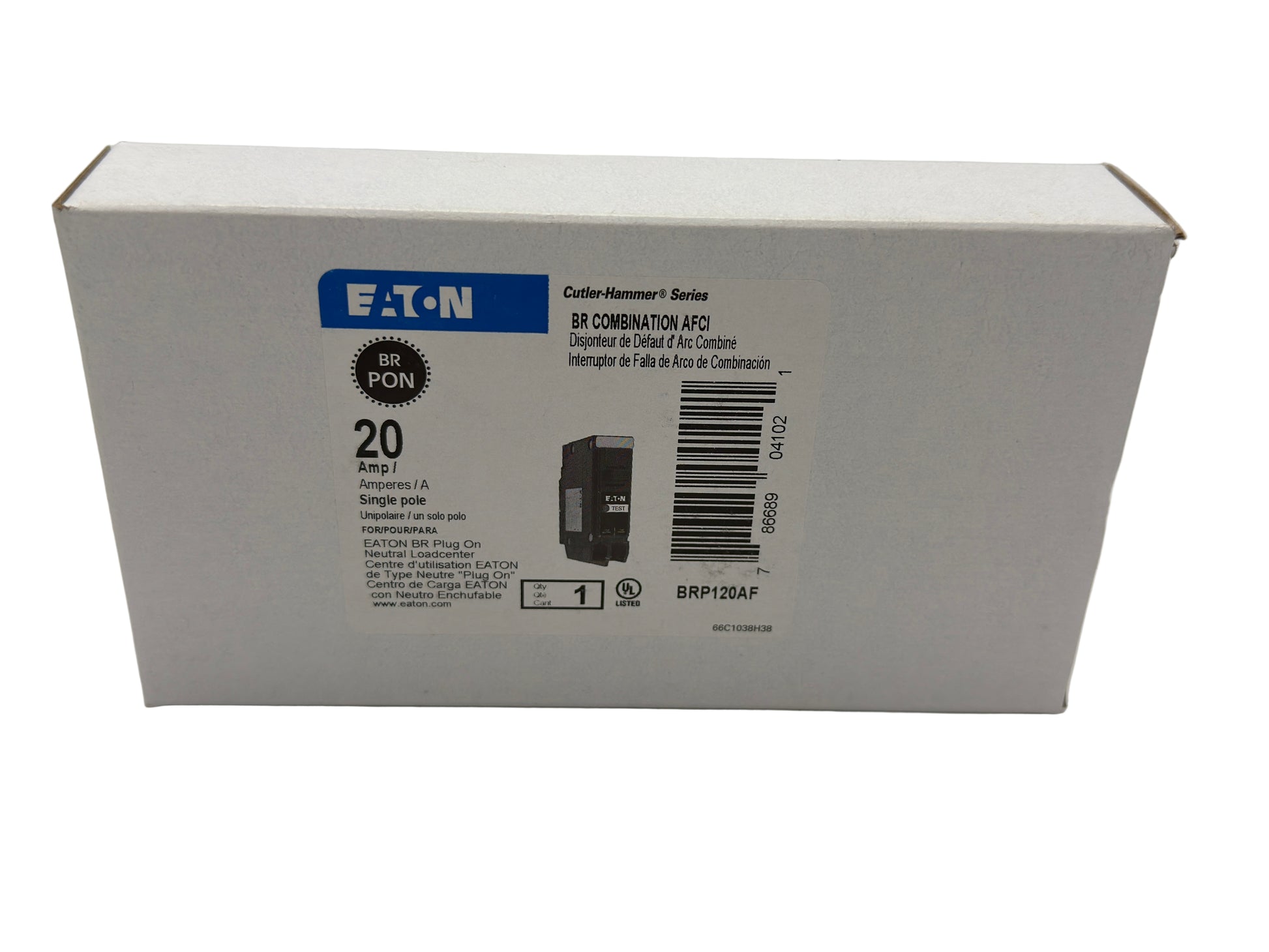

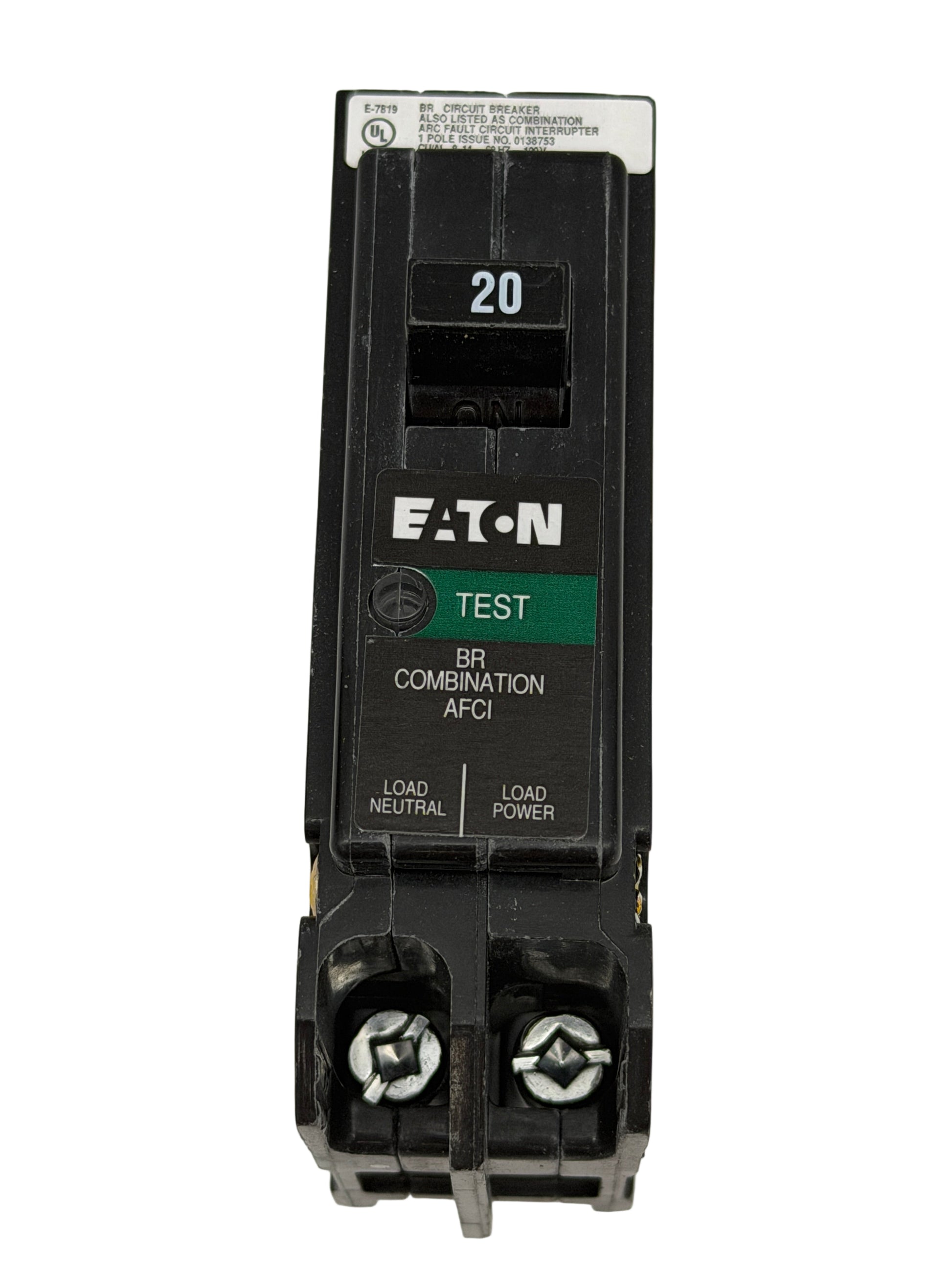

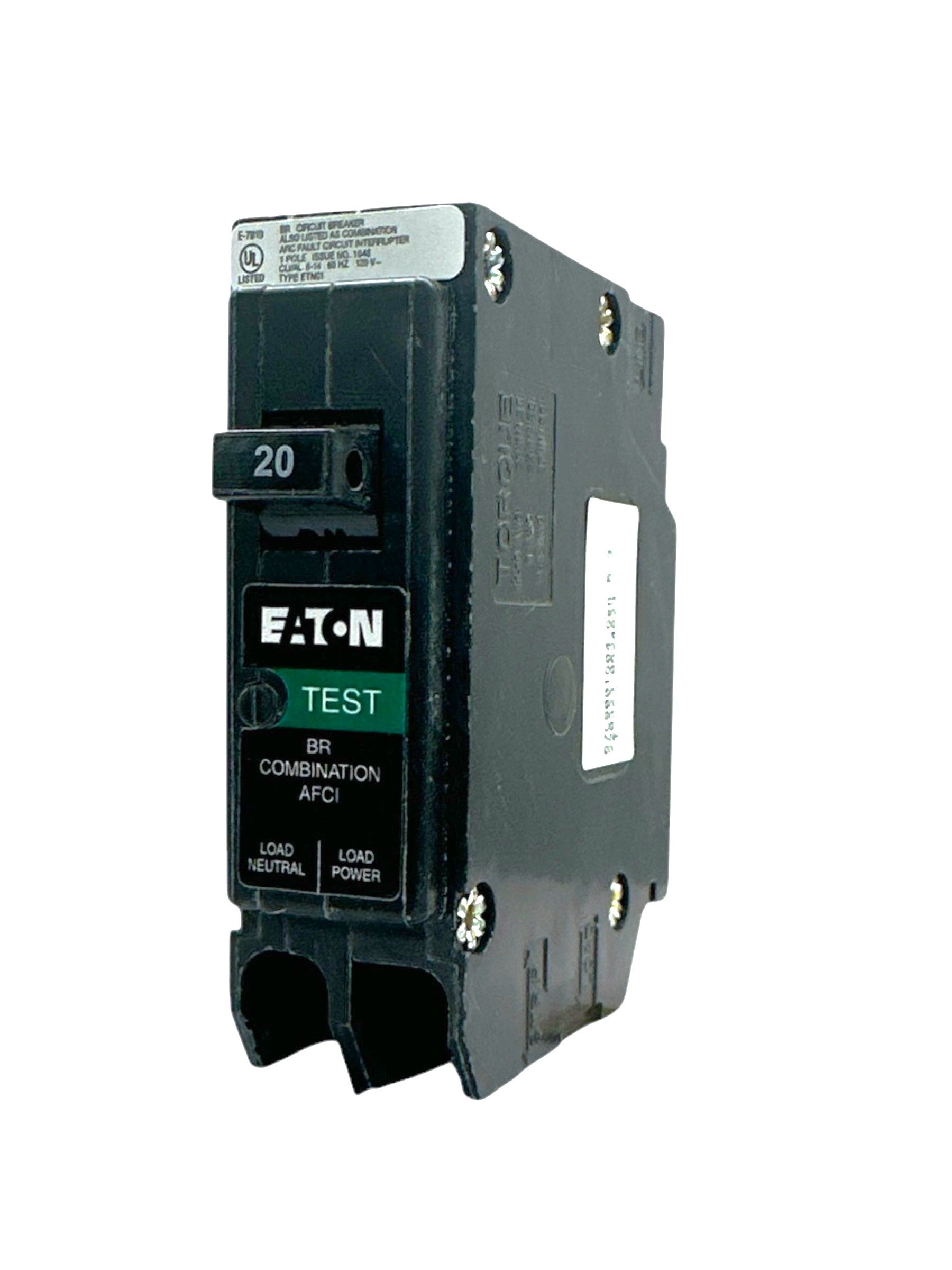

The Eaton BRP120AF is a brand new 20 Amp, 1-pole, 120V plug-on neutral combination arc-fault (AFCI) circuit breaker for Eaton BR plug-on neutral load centers. It protects your home's wiring from dangerous arcing faults, one of the leading causes of electrical fires, while also giving you standard overload and short-circuit protection.
Plug-On Neutral: Faster, Cleaner Installs
The breaker clips straight onto the panel's neutral rail. No pigtail to run to the neutral bar, fewer connections, and more room in the panel. A cleaner, faster install.
Features
Combination AFCI protection against series and parallel arcing faults
Plug-on neutral design
20A, 1-pole, 120VAC, 10kA interrupting rating
Thermal-magnetic trip for overload and short-circuit protection
Plug-on mounting for Eaton Type BR plug-on neutral load centers
UL Listed
Brand new
Size
Takes 1 space (1" wide) in an Eaton BR load center.
Uses
Bedrooms, living rooms, family rooms, hallways, closets, home offices, and other dwelling-unit 20A circuits where AFCI protection is required.
Most Common Use
Adding or replacing a 20A AFCI circuit in a home with an Eaton BR plug-on neutral panel, for new construction, a remodel, or bringing a circuit up to current code.
Important: A 20A breaker must be used with 12 AWG copper wire or larger. Never install a 20A breaker on a circuit wired with 14 AWG wire.
Compatibility: This breaker is designed for Eaton Type BR plug-on neutral load centers. Before ordering, check that your panel is a BR model with a plug-on neutral rail. If you're unsure, send us a photo of your panel label and we'll help you confirm the fit.
Why Buy From Us
With 24+ years of experience in the electrical industry, we know the products we sell and we're happy to answer your questions before you buy. Same-day handling, insured shipping, 30-day returns, and a 12-month warranty handled directly by us.
Shipping
Ships same day, carefully packaged and insured.
Note
Installation should be performed by a qualified person in accordance with local codes. Always turn off the main breaker before working inside a panel.
